Height 1080mm Water Vapour Permeability Tester 45degree Spray Head

Brand Name:	HAIDA
Model Number:	HD-W824
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE,ISO

Nozzle:

φ152mm

Spray Head:

25 Holes, φ (0.990 ± 0.005) Mm

Distance:

(610±10)mm

Inclination Angle:

45°

Sample Size:

(178 ± 10) Mm × (330 ± 10) Mm

Tension Of Spring Clip:

(0.45 ± 0.05) Kg

Dimensions:

335x285x1080mm (LxWxH)

Weight:

6kg

Packaging Details:

ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Supply Ability:

30 Sets per Month Haida

Highlight:

height 1080mm Water Vapour Permeability Tester

45degree Spray Head Water Vapour Permeability Tester

285mm width water repellency tester

Product Description

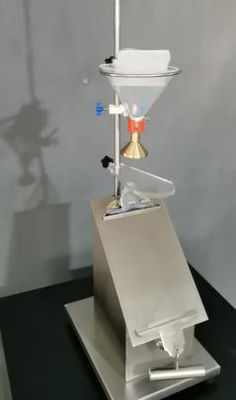

Height 1080mm Water Vapour Permeability Tester 45degree Spray Head

Product Introduction

Water Vapour Permeability Tester is used to measure the resistance of fabrics to the penetration of water by impact, and thus can be used to predict the probable resistance of fabrics to rain penetration.

It’s especially suitable for measuring the penetration resistance of garment fabrics.

Testing standard

AATCC42 ISO18695, etc.

Technical parameters

Technical Index	HD-W824
Nozzle	φ152mm
Spray head	25 holes, φ (0.990 ± 0.005) mm
The distance from the nozzle to the test bench center	(610±10)mm
Inclination angle	45°
Sample size	(178 ± 10) mm × (330 ± 10) mm
Tension of spring clip	(0.45 ± 0.05) kg
Dimensions	335x285x1080mm (LxWxH)
Weight	6kg


Height 1080mm Water Vapour Permeability Tester 45degree Spray Head 0

We have Excellent After sale Service:

12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con.

Good Packaging:Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
