Height 1080mm Water Vapour Permeability Tester 45degree Spray Head

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W824
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Nozzle: φ152mm Spray Head: 25 Holes, φ (0.990 ± 0.005) Mm
Distance: (610±10)mm Inclination Angle: 45°
Sample Size: (178 ± 10) Mm × (330 ± 10) Mm Tension Of Spring Clip: (0.45 ± 0.05) Kg
Dimensions: 335x285x1080mm (LxWxH) Weight: 6kg
High Light:

height 1080mm Water Vapour Permeability Tester


45degree Spray Head Water Vapour Permeability Tester


285mm width water repellency tester

Product Description

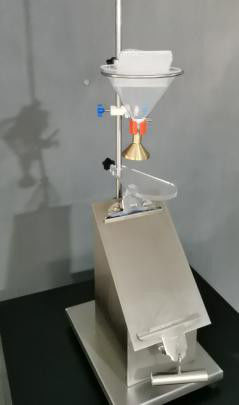

Height 1080mm Water Vapour Permeability Tester 45degree Spray Head





Product Introduction


Water Vapour Permeability Tester is used to measure the resistance of fabrics to the penetration of water by impact, and thus can be used to predict the probable resistance of fabrics to rain penetration.


It’s especially suitable for measuring the penetration resistance of garment fabrics.




Testing standard


AATCC42 ISO18695, etc.




Technical parameters


Technical Index HD-W824
Nozzle φ152mm
Spray head 25 holes, φ (0.990 ± 0.005) mm
The distance from the nozzle to the test bench center (610±10)mm
Inclination angle 45°
Sample size (178 ± 10) mm × (330 ± 10) mm
Tension of spring clip (0.45 ± 0.05) kg
Dimensions 335x285x1080mm (LxWxH)
Weight 6kg






water vapour permeability tester



We have Excellent After sale Service:


12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con.


Good Packaging:Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
