High Speed 52cm Diameter 315cm Depth Fully Automatic Washing Machine

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W820
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Interior Drum Diameter: (51.5±0.5)cm Depth: (315±1)cm
Outer Drum Diameter: 554±1mm Temperature Control: RT-99℃ Digital Control
Water Level Control: 1~20cm, Digital Control Power: Electronic
High Light:

52cm Diameter fully automatic washing machine


315cm Depth fully automatic washing machine


52cm Diameter high speed washing machine

Product Description

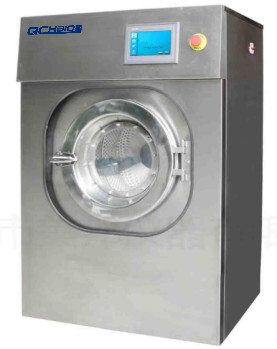

High Speed 52cm Diameter 315cm Depth Fully Automatic Washing Machine






Automatic Washer is used for testing the dimensional stability of fabrics, clothing and other textiles after washing.




Testing standard


ISO 6330-2012 , GB/T 8629 ,FZ/T 70009,IEC 60456

BS 4923 Methods for individual domestic washing and drying for use in textile testing

BS EN ISO 6330 Textiles. Domestic washing and drying procedures for textile testing





  1. Machine is fully comply with ISO 6330-2012 standard requirement.
  2. Machine adopts the independent suspension roller technology, high shock resistance performance, ultra-quiet operation, do not need to foot fixed.
  3. Using high-performance stepless variable speed motor, high speed coefficient of dehydration, digital set.
  4. 7 inches big screen English language display, color touch screen operation.
  5. Using 32-bit architecture (m3 microprocessors, fast data processing, instruments and responsive, stable and reliable running.
  6. Electronic pressure sensor with high precision, to ensure accurate and reliable water.
  7. 7 using optimized PID algorithm, temperature control, heating speed, small ripple control.
  8. 10 sets of GB/T 8629 built-in programs, 13 sets of ISO 6330 procedures; 1 set of 3 sets of custom procedures, manual single program.
  9. stainless steel metal handle and high pressure glass Windows, to ensure that the open door is more strong and durable.



Technical parameters


Technical Index HD-W820
Interior drum diameter (51.5±0.5)cm
Depth (315±1)cm
lift sheets Numbers: 3pieces,Angle :120°each one,Height: 53±1
Outer drum diameter 554±1mm
Rotation Speed

Washing: 52 ± 2r/min

Dehydration: 500 ± 20r/min (Low speed)&800 ± 20r/min(High Speed)

Rotation action

Normal rotation time interval:(12±0.1)s

Normal stop time interval:(3±0.1)s

Ease rotation time interval:(8±0.1)s

Ease stop time interval:(7±0.1)s

Soft rotation time interval:(3±0.1)s

Temperature control RT-99℃ digital control
Water level control 1~20cm, digital control
Washing procedure

10 sets GB/T 8629 procedure

12sets ISO 6330procedure

3sets custom procedure

1 set manual single procedure

Supply water system

Supply water flow (20±2)L/min

Water level checking: 3gear 100mm and 130mm

Drainage rate>30L/min

Power supply 3 phases 380V,50Hz,60Hz,6.5KW
