Place of Origin: | Guangdong, China (Mainland) |
---|---|
Brand Name: | HAIDA |
Certification: | CE,ISO |
Model Number: | HD-W820 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | cach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
Delivery Time: | 20 days after order confirmed |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
Supply Ability: | 30 Sets per Month Haida |
Power Supply: | RT-99℃ Digital Control | N.Weight: | 240KG |
---|---|---|---|
Dimension: | 805x705x1025mm | Rotation Action: | 3 Phases 380V,50Hz,60Hz,6.5KW |
Heating Power: | 5.4KW | ||
Highlight: | 6.5KW Fabric Shrink Test Machine,Digital Control Fabric Shrink Test Machine,32 Bit Textile Automatic Washing Machine |

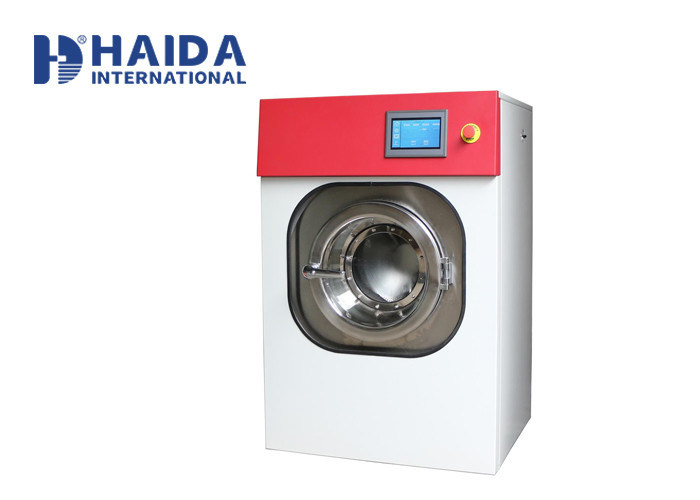

Automatic Washing Machine Fabric Shrink Test Machine Textile Fully Automatic Washing Machine
Product description
This machine is used for testing the dimensional stability of fabrics, clothing and other textiles after washing.
Test standard
ISO 6330-2012 , GB/T 8629 ,FZ/T 70009,IEC 60456
BS 4923 Methods for individual domestic washing and drying for use in textile testing
BS EN ISO 6330 Textiles. Domestic washing and drying procedures for textile testing
Feature
1. The machine fully meets the requirements of ISO 6330-2012 standard.
2. The machine adopts independent suspension roller technology, which has high seismic performance, ultra-quiet operation, and does not require feet to be fixed.
3. Adopt high-performance stepless variable speed motor, large dehydration speed coefficient, digital setting.
4. 7-inch large screen English display, color touch screen operation.
5. Adopt 32-bit system structure (m3 microprocessor, fast data processing speed, sensitive instrument response, stable and reliable operation.
6. High-precision electronic pressure sensor to ensure accurate and reliable water intake.
7. Adopting optimized PID algorithm, temperature control, fast heating speed, and small pulsation control.
8. 10 sets of GB/T 8629 built-in procedures, 13 sets of ISO 6330 procedures; 1 set of 3 sets of customized procedures, manual single procedures.
9. Stainless steel metal handles and high-pressure glass windows ensure that the door is more durable.
Technical parameter
Interior drum diameter | (51.5±0.5)cm |
Depth | (315±1)cm |
lift sheets |
Numbers: 3pieces Angle :120°each one Height: 53±1 |
Outer drum diameter | 554±1mm |
Rotation Speed |
Washing: 52 ± 2r/min Dehydration: 500 ± 20r/min (Low speed) 800 ± 20r/min(High Speed) |
Water level control | 1~20cm, digital control |
Temperature control | RT-99℃ digital control |
Heating power | 5.4KW |
Rotation action |
Normal rotation time interval:(12±0.1)s Normal stop time interval:(3±0.1)s Ease rotation time interval:(8±0.1)s Ease stop time interval:(7±0.1)s Soft rotation time interval:(3±0.1)s Soft stop time interval:(12±0.1)s |
Supply water system |
Supply water flow (20±2)L/min Water level checking: 3gear 100mm and 130mm Drainage rate>30L/min |
Washing procedure |
10 sets GB/T 8629 procedure 12sets ISO 6330procedure 3sets custom procedure 1 set manual single procedure |
Dimension | 805x705x1025mm |
Power supply | 3 phases 380V,50Hz,60Hz,6.5KW |
N.Weight | 240KG |
Our serives
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined.
