Environmental Climate Chamber Haida Constant Environment Stability Temperature and Humidity Controlled Test Chamber

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Accuracy:

0.01℃

Power:

5.5kw

Voltage:

380 V

Capacity:

60L/100L/150L/408L/800L/1000L

Internal Dimension:

400*500*500 Mm

External Dimension:

700*1400*1100mm

Temperature Range:

-70℃~+150℃

Temperature Fluctuation:

±0.5℃

Temperature Accuracy:

0.01℃

Humidity Range:

20~98%RH

Humidity Accuracy:

0.1%RH

Cooling Speed:

1℃/min

Heating Speed:

3℃/min

Internal Material:

SUS#304 Stainless Steel

External Material:

Stainless Steel

Highlight:

constant environment test chamber

temperature humidity controlled chamber

stability test chamber with warranty

Product Description

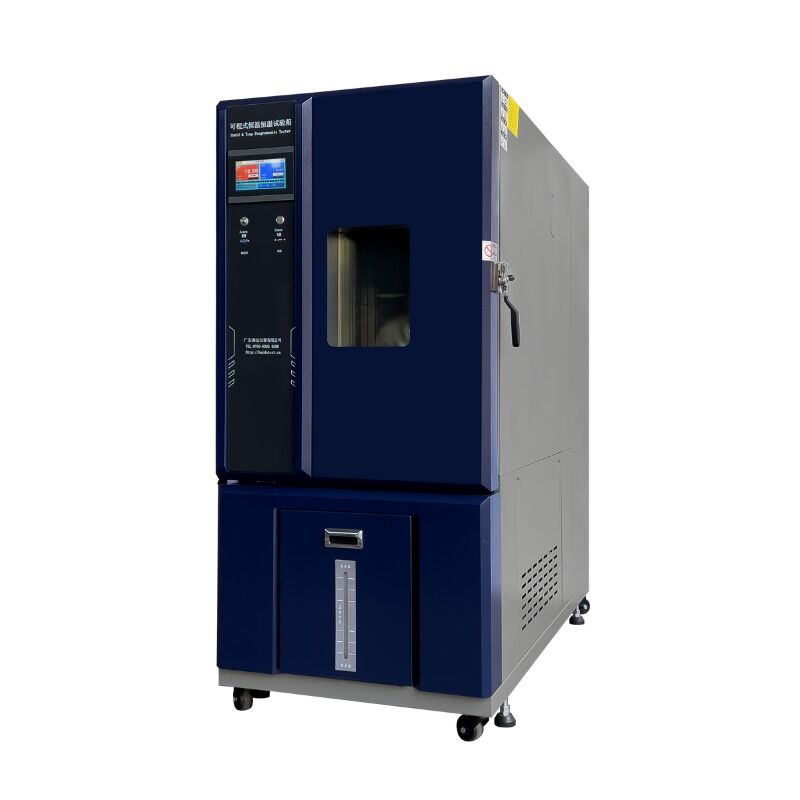

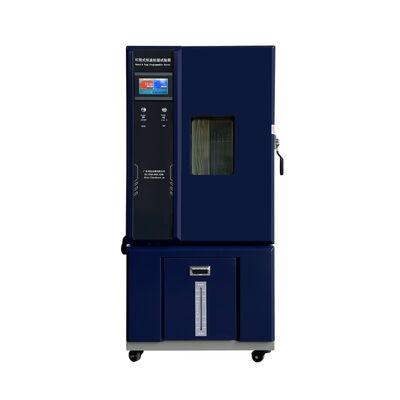

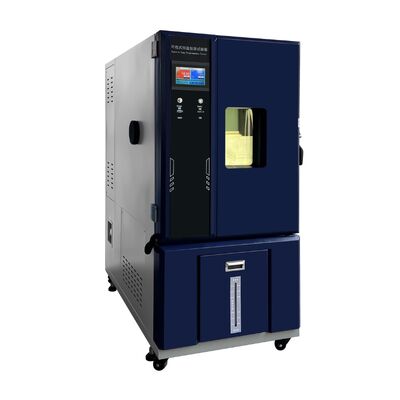

Environmental Climate Chamber - Constant Environment Stability Temperature and Humidity Controlled Test Chamber

Model: HD-E702

Professional temperature and humidity test chamber designed to evaluate material performance under various environmental conditions. Tests heat resistance, cold resistance, dry resistance, and humidity resistance of diverse materials.

Applications

Ideal for quality testing of electronics, electrical appliances, mobile phones, communications equipment, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical devices, aerospace components, and more.

Technical Specifications

Model Dimensions

Model	Internal Dimension (W×H×D)	External Dimension (W×H×D)
HD-E702-100	400×500×500mm	700×1400×1100mm
HD-E702-150	500×500×600mm	800×1500×1100mm
HD-E702-225	500×750×600mm	800×1670×1200mm
HD-E702-408	600×850×800mm	900×1770×1400mm
HD-E702-1000	1000×1000×800mm	1550×2100×1400mm

Performance Specifications

Internal dimension (W×D×H)	400×500×500mm
External dimension (W×D×H)	700×1400×1100mm
Temperature range	-20℃, -40℃, -60℃, -70℃ to +150℃
Temperature fluctuation	±0.5℃
Temperature uniformity	≤1.5℃
Humidity range	20~98%RH
Humidity fluctuation	≤±2.5%RH
Humidity uniformity	3%RH
Cooling speed	1℃/min average (without loading)
Heating speed	3℃/min average (without loading)

Construction & Components

Internal chamber material	SUS#304 stainless steel, mirror finished
External chamber material	Stainless steel
Cooling method	Air cooling
Controller	LCD touch screen, programmable control temperature and humidity
Insulation material	50mm high density rigid Polyurethane foam
Heater	Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor	France Tecumseh compressor × 2 sets
Lighting	Heat resistance
Temperature sensor	PT-100 dry and wet bulb sensor
Observation window	Tempered glass
Testing hole	Diameter 50mm, for cable routing
Sample tray	SUS#304 stainless steel, 2pcs

Safety Protection Systems

Protection for leakage
Over-temperature protection
Compressor overvoltage and overload protection
Heater short circuit protection
Water shortage protection

Chamber Applications

Simulate test environments with different temperature and humidity conditions
Cyclic testing including climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test
Cable port with flexible silicone plug for cable routing to provide conditions for test units under operation
Uncover test unit weaknesses in short-term tests with accelerated time effect
