Salt Spray Fog Testing Chamber Corrosion Aging Test Machine Salt Spray Test Equipment for Paint/Electroplating/Coating Material

Brand Name:	Haida
MOQ:	1
Price:	$1,100-2,800

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Accuracy:

±1%

Power:

4kw

Voltage:

220 V

Lab Volume:

108L

Temperature Range:

RT+5°C~55°C

Temperature Uniformity:

±1°C

Brine Tank Capacity:

15L

Salt Spray Settlement:

1.0-2.0ml/80cm

Test Time:

1-9999 (S,M,H) Adjustable

Inner Box Size:

60*45*40 Cm

Outside Box Size:

107*60*118 Cm

Temperature Fluctuations:

≤±0.5°C

Temperature Precision:

±1°C

Spray Quantity:

1.0~2.0 Ml / 80cm2 / Hr

PH Range:

6.5~7.2 (NSS ACSS), 3.0~3.2 (CASS)

Highlight:

salt spray testing chamber for corrosion

salt spray test machine for paint

electroplating corrosion test equipment

Product Description

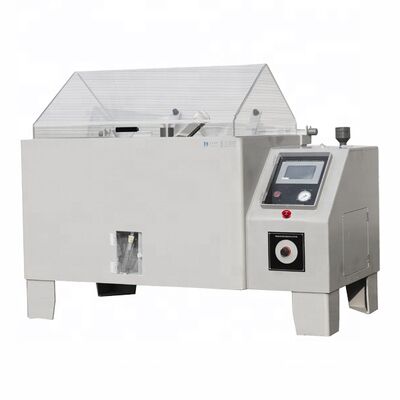

Salt Spray Fog Testing Chamber

Professional corrosion aging test machine for evaluating paint, electroplating, coating materials and various surface treatments. Designed to test corrosion resistance after anti-corrosive treatments.

Technical Specifications

Parameter	Specification
Inner Box Size (LWH)	604540 cm (Customizable)
Outside Box Size (LWH)	10760118 cm (Customizable)
Equipment Material	Imported P.V.C rigid plastic board for inside & outside shell, transparent P.V.C for tank cover
Temperature Range	RT+5°C~55°C
Temperature Fluctuations	≤±0.5°C
Temperature Uniformity	≤±2°C
Temperature Precision	±1°C
Test Chamber Temperature	Salt Spray Method (NSS ACSS): 35±1°C Corrosion-resistant Testing Method (CASS): 50±1°C
Saturated Air Barrel Temperature	Salt Spray Method (NSS ACSS): 47±1°C Corrosion-resistant Testing Method (CASS): 63±1°C
Brine Temperature	35°C±1°C
Spray Quantity	1.0~2.0 ml / 80cm² / hr
Test Time	1-9999 (S,M,H) adjustable
PH Value	Salt Spray Method (NSS ACSS): 6.5~7.2 Corrosion-resistant Testing Method (CASS): 3.0~3.2
Lab Volume	108L (Customizable)
Brine Tank Capacity	15L
Power	AC220V, 10A
Safety Protection	Current discharge, over pressure, over temperature, and over load fuse protection
Accessories	Testing Salt, Measuring tank, Equipment (1 set each)
Compliance Standards	CNS: 3627, 3385, 4159, 7669, 8886 JIS: D0201, H8502, H8610, K5400, Z2371 ISO: 3768, 3769, 3770 ASTM: B117, B268

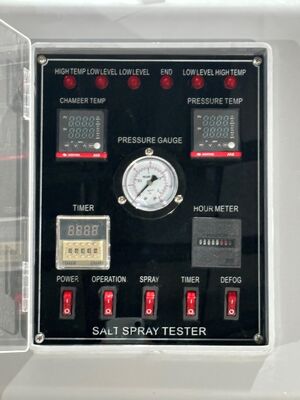

Control System Features

Temperature Control: Chamber temperature control according to standards (35°C for salt test, 50°C for corrosion test)
Saturated Air Barrel Temperature Controller: Precise control (47°C for salt test, 63°C for corrosion test)
Programmable Timer: Adjustable from 0.1s to 9999hr with automatic shutdown
Running Timer: Direct readout 0-9999.9hr for recording total work hours
Heat Sink Temperature Controller: Maintains optimal operating conditions

About HAIDA INTERNATIONAL

Professional manufacturer of testing equipment with over 20 years of experience. Our products serve paper products, packaging, ink printing, adhesive tapes, footwear, leather products, environment, toys, electronics, plastic and rubber industries, plus scientific research and quality inspection institutions.

Quality Control

Our Services

Haida Equipment Support

48-hour response guarantee with solutions within 3 working days. Includes operation videos, English manuals, and video conferencing support.

Onsite Services

Device installation and setup
Equipment operation and technical training
Equipment calibration services
Daily maintenance and equipment care

Free technical training for visiting factories

24-hour online contact support

Free software upgrades

Comprehensive documentation: product instructions, operation videos, test applications and reports

Why Choose HAIDA?

Considerate Service: International plugs, manual voltage change (110V to 220V), insurance indicators
Excellent After-sale Service: 12-month warranty with free controller repairs and replacement parts
Comprehensive Support: Operation videos, English manuals, and video conferencing assistance

Please leave a message below and click "CONTACT SUPPLIER" for immediate assistance.
