products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Environmental Test Chamber
Created with Pixso.

Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber

Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber

Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber

Brand Name: Haida
MOQ: 1
Price: $2,099-2,800
Detail Information
Product Description
Detail Information
Place of Origin:
GUA
Power:
5.5kw
Voltage:
380 V
Temperature Range:
-20℃, -40℃, -60℃, -70℃~150℃
Temperature Accuracy:
0.01℃
Temperature Tolerance:
±1.0℃
Humidity Range:
20%-98%RH
Humidity Accuracy:
0.1%RH
Cooling Method:
Air Cooled
Running Mode:
Fix Running, Pattern Running
Output:
Rs-232 (USB,Optional)
Refrigerator:
France Tecumseh Compressor Or Semi Hermetic BOcK Compressor
Operation Panel:
Programmable LCD Touch Screen
Heating Rate:
3℃/min
Cooling Rate:
1℃/min
Water Tank Capacity:
25L * 1pc (Chamber < 800L), 25L* 2pc (Chamber > 800L)
Highlight:

constant temperature humidity test chamber

,

environmental aging test chamber

,

climatic temperature cycling chamber

Product Description

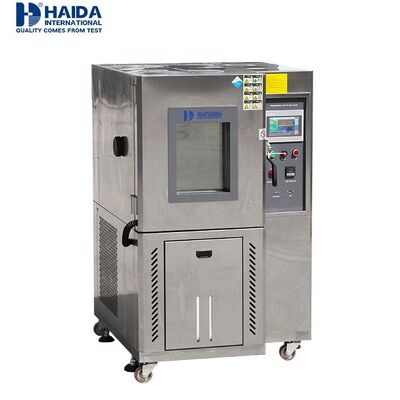

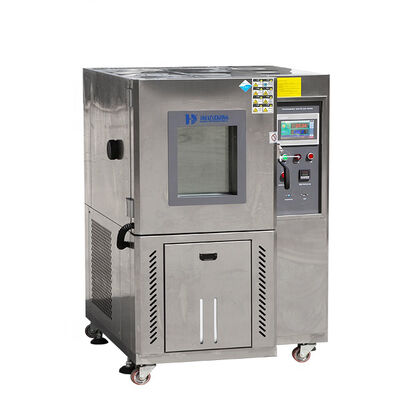

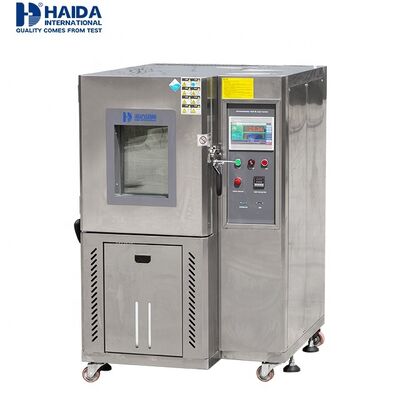

Constant Temperature and Humidity Test Chamber
Simulated Environmental Aging Chamber / Climatic Temperature Cycling Test Chamber
Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 0Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 1
The HD-E702 series constant temperature and humidity test chamber simulates harsh environmental conditions including high temperature, low temperature, and humid heat environments encountered during transportation, storage, and use. Designed for testing electronic instruments, new materials, electrical vehicles, metal electronic products, and aerospace materials, this chamber evaluates product durability, performance degradation, and lifespan under alternating temperature and humidity conditions.
Product Specifications
Model Dimensions
ModelInternal Dimension (W×H×D)External Dimension (W×H×D)Temperature Range
HD-E702-100400×500×500mm950×1400×1100mm-20/-40/-70℃
HD-E702-150500×500×600mm1100×1500×1100mm-20/-40/-70℃
HD-E702-225500×750×600mm1100×1670×1200mm-20/-40/-70℃
HD-E702-408600×850×800mm1200×1770×1400mm-20/-40/-70℃
HD-E702-10001000×1000×800mm1550×2100×1400mm-20/-40/-70℃
Performance Specifications
Temperature & Humidity Control
Balanced temperature and humidity control (BTHC) PID intelligent adjustment
Temperature Range
-20℃, -40℃, -70℃ to 150℃
Temperature Accuracy
0.01℃
Temperature Tolerance
±1.0℃
Temperature Fluctuations
≤±0.5℃ (without load and temperature stable)
Temperature Uniformity
≤1.5℃ (without loading), 50mm≤SENSOR

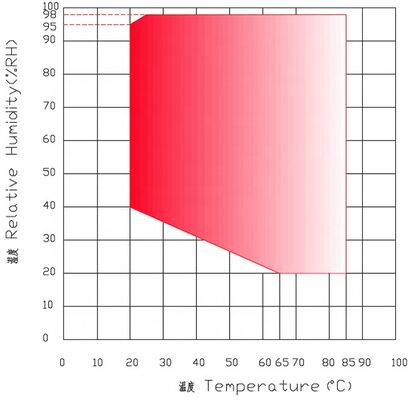

Humidity Range
20%-98%RH
Humidity Accuracy
0.1%RH
Humidity Tolerance
≥75%RH: ≤±3%RH, ≤75%RH: ≤±6%RH
Humidity Fluctuations
≤±2.5%RH
Heating Rate
3℃/min in average
Cooling Rate
1℃/min in average
Regulator System
  • Cooling Method: Single stage compression, two stage compression
  • Refrigerator: Hermetically Sealed France Tecumseh Compressor or Semi-hermetic BOcK Compressor
  • Condensation Method: Air-cooled
Controller Features
  • Operation Panel: Programmable LCD Touch Screen
  • Running Mode: Fix Running, Pattern Running
  • Program Memory Capacity: 120 Group Programmable, Max 100 Section Each
  • Output: Rs-232 (USB, Optional)
Water Supply System
  • Water Supply: Circulating Water
  • Water Tank Capacity: Chamber Internal Capacity < 800L: 25L × 1pc
  • Chamber Internal Capacity > 800L: 25L × 2pc
Product Details
Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 2Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 3
Manufacturer Information
Founded in 2004, Haida is the recognized market leader in Dongguan, China for testing equipment. The company specializes in four main manufacturing series: Accelerated Environmental Series, Universal Tensile Machine, Paper & Packaging, and Foam, Furniture & Optical equipment. Haida also serves industries including Textile, Shoes & Leather, Luggage, Baby Carriage & Toys, and optical testing equipment.
Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 4Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 5
Our Customers
Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 6Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 7
Service & Support
Haida Equipment Service: We provide comprehensive technical support with guaranteed response within 48 hours and solutions within 3 working days. Services include operation videos, English operation manuals, and video conferencing support.
Onsite Services
  • Device installation
  • Equipment Operation Test Technology training
  • Equipment Calibration
  • Daily maintenance and equipment maintenance
Additional Support Services
  • Free technical training for visiting factories
  • 24-hour Online contact
  • Free software upgrades
  • Free documentation: Product Instructions, Operation manuals/videos, Experiment Test applications and reports
Device Problem Resolution
  • Social media 24 hours online communication
  • Mail Seamless Docking
  • Video Conferencing
  • Free door-to-door technical service
Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 8Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 9
Why Choose Haida?
Quality Control Systems
Our research and development team includes more than 10 technical engineers with extensive R&D experience. They are experts in industrial product design principles, including circuit design, mechanical design, product design, and energy conservation environmental design.
Raw Material Control
All equipment part suppliers must undergo ISO quality system certification to ensure material quality and safety. Our quality inspection departments conduct standard inspections for every batch of materials.
Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 10Constant Temperature and Humidity Test Chamber Simulated Environmental Aging Chamber /Climatic Temperature Cycling Test Chamber 11
Assembly Control
Haida operates 6 production lines with advanced manufacturing technology including bending machines, cutting machines, milling machines, 8 wire cutting machines, 3 lathes, 3 drilling machines, Laser Cutting CNC Bending Machines, and grinders.
Finished Product Control
Haida maintains internal quality inspection departments and works with third-party testing certification bodies. Our internal quality inspection department conducts comprehensive testing of finished equipment including appearance inspection, internal circuit and instrumentation testing, software testing, instrument calibration, and sample testing.
