Environmental Test Chamber
Created with Pixso.

UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber

UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber

UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber

Brand Name: HAIDA
Model Number: HD-E802
MOQ: 1
Price: $2,588-3,588
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Temperature Range:
RT+20 ℃ ~ 70 ℃
Blackboard Temp.:
50 ℃~ 80 ℃ / Tolerance Of ± 1 ℃
Temperature Fluctuation:
±1 ℃
UV Lamp:
8 Pcs, 1600 Hours Lifetime
Ultraviolet Wavelength:
290nm~400nm
Effective Irradiation Area:
900*210mm
Standard Specimen Size:
75 * 290mm (12pcs)/ 75*150mm (24pcs)
Distance Between Sample And Lamp:
50±2mm
Chamber Material:
Stainless Steel 304
Control System:
PLC Controller (illumination, Condensation And Water Spray)
Chamber Dimension:
1300*500*1460mm
Humidity Range:
≥75%RH
Water Usage:
8L/day
Irradiance Range:
0.45~0.90W/m2
Lamp Power:
40W/Piece
Highlight:

UV aging test chamber with warranty

,

UV accelerated weathering tester

,

UV weathering aging test chamber

Product Description

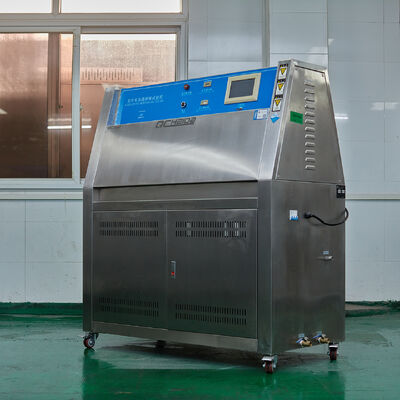

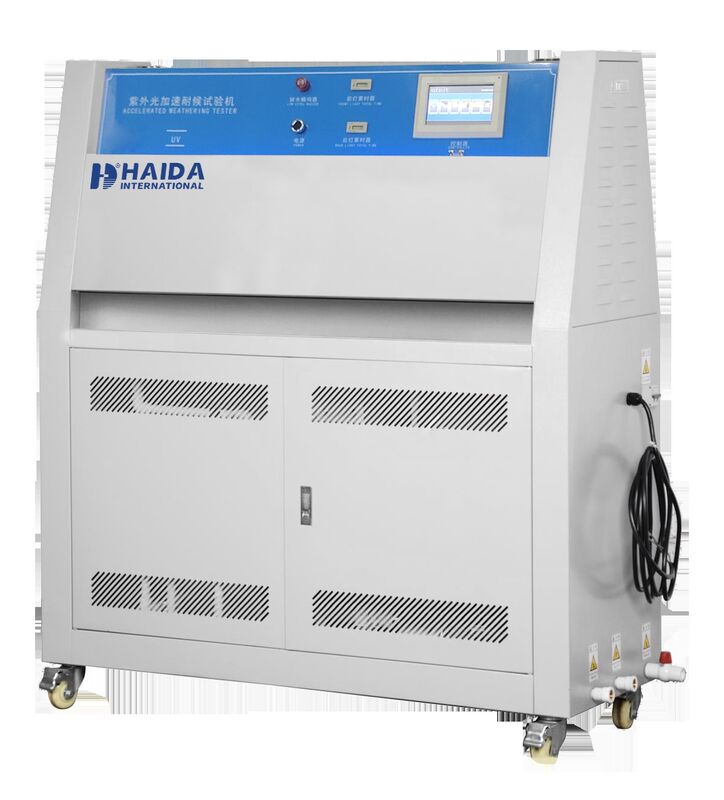

UV Weathering Aging Test Chamber
Advanced UV accelerated weathering tester designed to simulate environmental conditions and assess material durability through controlled exposure to UV light, moisture, and temperature variations.

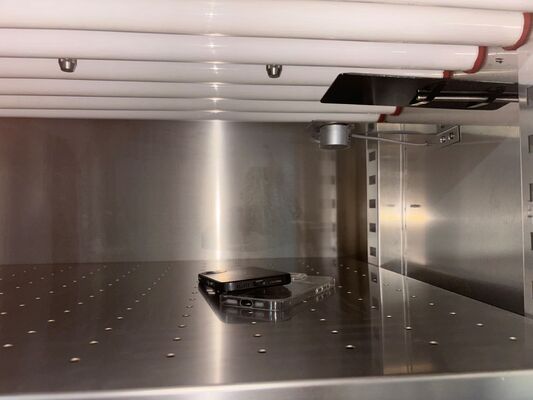

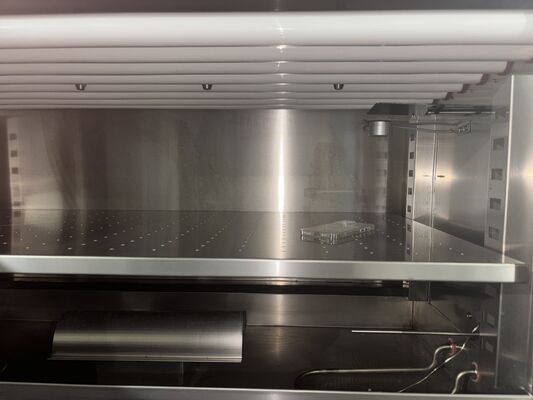

UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber 0 UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber 1
Technical Specifications
Item Specification
Chamber dimension (W*D*H) 1300*500*1460mm
Chamber material SUS#304 stainless steel
Temperature range RT+20℃ to 70℃
Temperature fluctuation ≤±1.0℃
Temperature uniformity 3℃
Humidity range ≥75%RH
Controller Programmable controller, LCD touch screen
Control mode Balance temperature humidity control (BTHC)
Test cycle setting Exposure, condensation and water spray test cycle is programmable

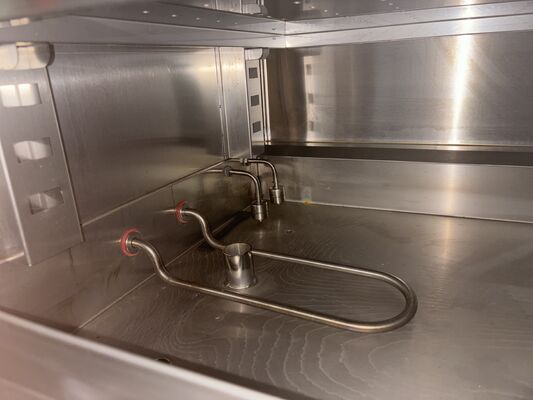

Water spray cycle Spray 18mins in every 120mins / spray 12mins in every 60mins
Water usage 8L/day
Distance from sample to lamp 55±2mm
Centre distance between lamps 65~70mm
Irradiance range 0.45~0.90W/m2
UV lamps Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
Lamp power 40W/Piece
Specimen Size 75×290mm (24pcs) 75x150mm (48pcs) maximum thickness 5mm
Testing time 0~999H, adjustable
Protection system Overload short circuit protection, Over temperature protection, Water lacking protection, Earth leakage protection, Auto shut off protection
Packaging Dimensions (W*D*H) 1490*620*1620mm
Power supply source single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight 180kg
HS Code 8479899990
Applications
  • Simulate sun, rain spray and condensation damage to test materials through controlled exposure to sunlight with moisture and temperature variations
  • Accelerated testing: achieve results in days or weeks equivalent to months of outdoor exposure
  • Detect various damage types including fading, discoloration, reduced brightness, powdering, cracking, blurring, brittleness, strength reduction, and oxidation
  • Provide reference data for material improvement and assess product durability impacts
UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber 2 UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber 3 UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber 4
Test Standards Compliance
ISO 4892-3, ASTM G154
UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber 5 UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber 6
Manufacturer Profile
HAIDA INTERNATIONAL is a professional manufacturer of testing equipment with over 20 years of industry experience. Our products serve diverse industries including paper products, packaging, ink printing, adhesive tapes, footwear, leather products, electronics, plastic and rubber products, and are trusted by research institutions, quality inspection organizations, and academic institutions worldwide.
UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber 7
Quality Assurance
UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber 8
Service & Support
Haida Equipment Service
  • 48-hour response guarantee for technical issues
  • Solution provision within 3 working days
  • Operation videos and English manuals provided
  • Video conference support available
Onsite Services
  • Professional device installation
  • Equipment operation and technical training
  • Precision equipment calibration
  • Daily maintenance and equipment care
Additional Support Features
  • Free technical training for factory visits
  • 24-hour online contact availability
  • Complimentary software upgrades
  • Free documentation: product instructions, operation guides, test applications, and reports
Problem Resolution
  • 24-hour social media communication
  • Seamless email support
  • Video conferencing solutions
  • Complimentary on-site service when required
UV Aging Test Chamber/UV Accelerated Weathering Tester UV Weathering Aging Test Chamber 9
