| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W807 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Spread Of Each Lea: | 60 Mm |
|---|---|---|---|
| Traverse Motion: | 35 ± 0.5 Mm | Pre-tension: | 0 -100 CN |
| Dimensions: | 780 X 660 X 480 Mm | Weight: | 53 Kg |
| High Light: | Wrap Reel Machine,Textile Wrap Reel,Yarn Wrap Reel |
||

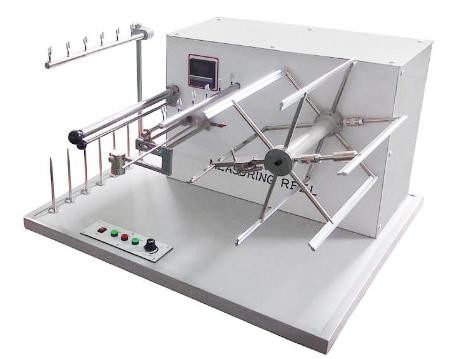

Automatic 60mm Wrap Reel Machine , Textile Testing Equipment 100 CN
Application
Automatic Wrap Reel is an ideal equipment to produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing. Supplied with 1 meter or 54 Inches Collapsible arm Swift/wheel (Specify)
To produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing.
Test standard
ASTM D1907 Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method
ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems
ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method
BS 2010 Method for determination of the linear density of yarns from packages
DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)
Technical parameter
| Technical Index | HD-W807 |
| Number of leas made at a time | 6 |
| Spread of each lea | 60 mm |
| Swift/wheel circumference | 1.5 yards or 1 meter |
| Operating speed | 100 ± 2 rpm (20-250rpm adjustable) |
| .Digital Counter (Preset Type) | 0–9999,LED |
| Traverse motion | 35 ± 0.5 mm |
| Pre-tension | 0 -100 cN |
| Dimensions | 780 x 660 x 480 mm |
| Power supply | 220V,50Hz |
| Weight | 53 Kg |
We will give you
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
