| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W861 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | AC220V 50HZ 300W | Measuring Accuracy: | ≤0.2%F·S |
|---|---|---|---|
| Measure Range: | 50N,100N,300N,500N(Optional) | Draw Speed: | 50~1000mm/min |
| Max Elongation: | 800mm | Fixture Distance: | 200~500mm,Digital Preset,Pneumatic Clamp |
| Outside Dimension: | 520X400X1600mm | Net Weight: | 60Kg |
| High Light: | 300W Yarn Twist Tester Machine,1000mm / Min Yarn Twist Tester Machine,50N Yarn Twist Tester Machine |
||

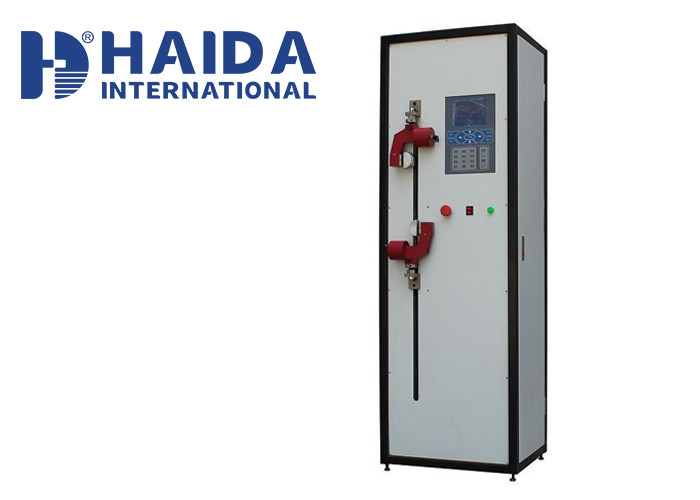

Yarn Twist Test Machine For Chemical Fiber Filament Yarn Twist Suitable For Textile Industry
Product description
This machine is use for testing breaking strength and elongation test for Synthetic fiber monofilament, nylon, polyamide fiber, polyester filament, ply yarn and textured yarn
Test standard
GB/T 14344,ISO 2062,GB/T 3916,ASTM D2256,DIN,BS
Measure Range: 1%~100%
| Model | A type | B type | C type |
| Load | 50N | 100N | 500N |
Mode:CRE, Microcomputer Control, LCD display Support, online communication
Technical parameter
| Measuring accuracy | ≤0.2%F·S |
| Draw speed | 50~1000mm/min |
| Max Elongation | 800mm |
| Fixture distance | 200~500mm,Digital Preset,Pneumatic clamp |
| Power | AC220V 50HZ 300W |
| Outside dimension | 520X400X1600mm |
| Weight | 60Kg |
about us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
