Yarn Twist Tester Machine
Created with Pixso.

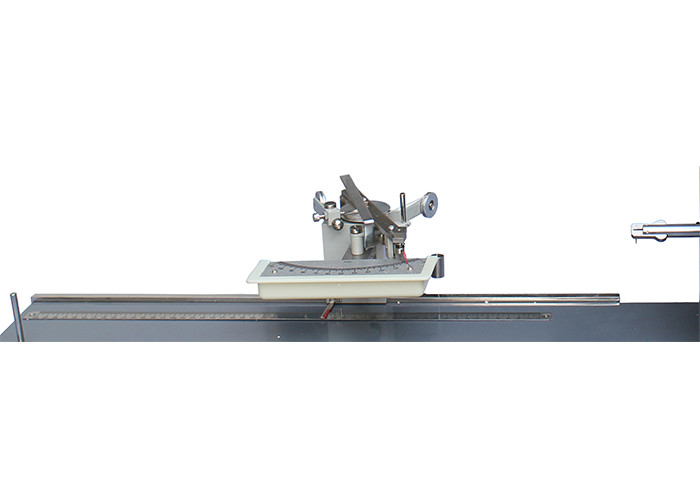

HAIDA 800r/Min Yarn Twist Tester Machine By The Untwist Retwist Method Max. 60mm

HAIDA 800r/Min Yarn Twist Tester Machine By The Untwist Retwist Method Max. 60mm

Brand Name: HAIDA
Model Number: HD-W815
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
CE,ISO
Power:
Electronic
Measuring Range:
1 ~ 9999.9 Twist / 10 Cm
Untwisting Elongation Range:
Max. 60mm
Test Speed:
800r/min, 1500r/min
Additive Tension:
0.5~160.5cN
Dimension Size:
880x150x175mm
Weight:
16kg
Power Supply:
220V,50Hz
Packaging Details:
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Supply Ability:
30 Sets per Month Haida
Highlight:

HAIDA Yarn Twist Tester Machine

,

800r/min Yarn Twist Tester Machine

,

800r/min twist tester machine

Product Description

HAIDA 800r/Min Yarn Twist Tester Machine By The Untwist Retwist Method Max. 60mm







Application



Yarn Twist Tester, to determine yarn twist in single or plied yarns, quadrant type with auto stop & reverse for conventional or untwist/re-twist methods. Twist tester offers adjustable test length up to 500mm/20 inches for S & Z twist yarns.







Technical parameters



Technical Index HD-W815
Test method

Test method 1: Single untwist-retwist method

Test method 2: Double untwist-retwist method

Test method 3: Direct counting method

Test method 4: Multiple untwist-retwist method

Specimen length 25mm,50mm,100mm,250mm,500mm
Rotating speed of grippe 1500 r/min, 800 r/min, slow inching speed.
Measuring range 1 ~ 9999.9 twist / 10 cm
Untwisting elongation range Max. 60mm
Determine maximum twist contraction 20mm
Test speed 800r/min, 1500r/min
Additive tension 0.5~160.5cN
Dimension size 880x150x175mm
Weight 16kg
Power 220V,50Hz






Testing standard



ASTM D1422 Standard Test Method for Twist in Single Spun Yarns by the Untwist-Retwist Method

ASTM D1423 Standard Test Method for Twist in Yarns by Direct-Counting

ISO 2061 Textiles -- Determination of twist in yarns -- Direct counting method

BS 2085 Method of test for determination of twist in yarns, direct counting method

DIN 53832 Testing of textiles -- Determination of the twist of single and plied yarns and of the change of length. untwist method



we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.







FAQ


How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.



How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.



What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
