| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W815 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | cach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | 220V,50Hz | Specimen Length: | 25mm,50mm,100mm,200mm,250mm,500mm |
|---|---|---|---|
| Measuring Range: | 1 ~ 9999.9 Twist / 10 Cm | Untwisting Elongation Range: | 16kg |
| Additive Tension: | Max. 60mm | Determine Maximum Twist Contraction: | 20mm |
| High Light: | Touch Screen Yarn Twist Testing Machine,Stainless Steel Yarn Twist Testing Machine,Specimen Length 25mm Yarn Twist Tester |
||

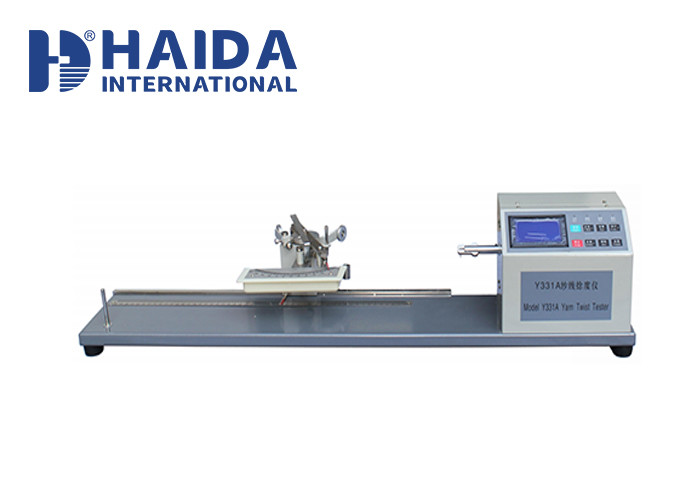

High-Precision Stainless Steel Touch Screen Yarn Twist Test Machine Yarn Twist
Yarn Twist Test Machine to determine yarn twist in single or plyed yarns, quadrant type with auto stop & reverse for conventional or untwist/retwist methods.
Product description
This machine is use to test variety of yarn twist.
Test standard
GB/T2543.1/2, FZ/T 10001,ISO 2061,ASTM D1423,ASTM D1422,ASTM D204,JIS L1095
Technical parameter
| Work mode |
Microcomputer program control data processing printing results |
| Test method |
direct counting method, one untwisting twisting method secondary untwisting twisting method three untwisting twisting method |
| Specimen length | 25mm,50mm,100mm,200mm,250mm,500mm |
| Measuring direction | |
| Measuring range | 1 ~ 9999.9 twist / 10 cm |
| untwisting elongation range | Max. 60mm |
| Determine maximum twist contraction | 20mm |
| Test speed | 800r/min, 1500r/min |
| additive tension | 0.5~160.5cN |
| Dimension size | 880x150x175mm |
| Weight | 16kg |
| Power | 220V,50Hz |
