| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W861 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Measuring Accuracy: | ≤0.2%F·S |
|---|---|---|---|
| Measure Range: | 50N,100N,300N,500N(Optional) | Draw Speed: | 50~1000mm/min |
| Max Elongation: | 800mm | Outside Dimension: | 520X400X1600mm |
| Net Weight: | 60Kg | Use: | Ply Yarn And Textured Yarn And So On |
| High Light: | 300N Yarn Twist Tester Machine,1000mm/min Yarn Twist Tester Machine,300N Yarn Strength Tester |
||

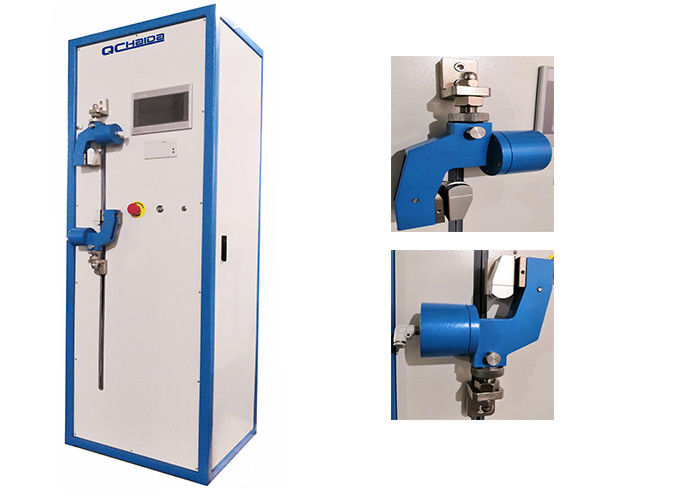

300N 1000mm/min Yarn Twist Test Machine For Textile Breaking Strength
Technical parameters
| Technical Index | HD-W861 |
| Measuring accuracy | ≤0.2%F·S |
| Measure range | 50N,100N,300N,500N(Optional) |
| Draw speed | 50~1000mm/min |
| Max Elongation | 800mm |
| Fixture distance | 200~500mm,Digital Preset,Pneumatic clamp |
| Power | AC220V 50HZ 300W |
| Outside dimension | 520X400X1600mm |
| Net Weight | 60Kg |
Application
Yarn Twist Test Machine is use for testing breaking strength and elongation test for Synthetic fiber monofilament, nylon, polyamide fiber, polyester filament, ply yarn and textured yarn.
Test standard
GB/T 14344,ISO 2062,GB/T 3916,ASTM D2256,DIN,BS
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
