| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W807 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | cach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Spread Of Each Lea: | 60 Mm |
|---|---|---|---|
| Swift/wheel Circumference: | 1.5 Yards Or 1 Meter | Operating Speed: | 100 ± 2 Rpm (20-250rpm Adjustable) |
| Digital Counter (Preset Type): | 0–9999,LED | Traverse Motion: | 35 ± 0.5 Mm |
| Dimensions: | 780 X 660 X 480 Mm | Weight: | 53 Kg |
| High Light: | Automatic Wrap Reel Testing Machine,60mm Wrap Reel Testing Machine,250rpm Adjustable Yarn Twist Tester |
||

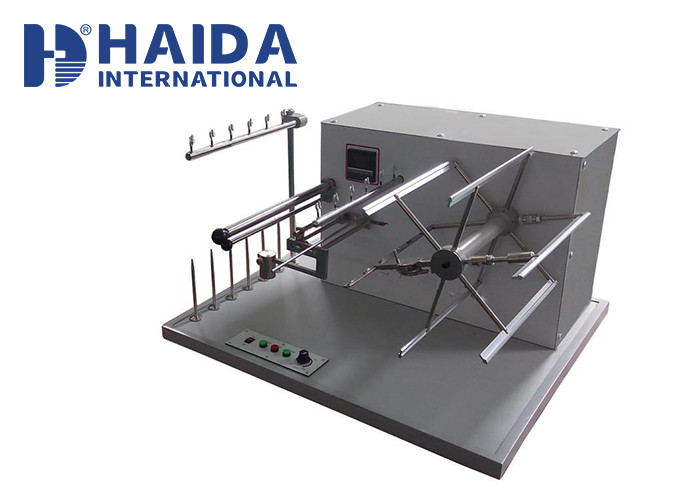

Automatic Wrap Reel Testing Machine Yarn Twist Tester
For Accurately Measuring The Length Of The Yarn
Product description
Automatic Wrap Reel is an ideal equipment to produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing. Supplied with 1 meter or 54 Inches Collapsible arm Swift/wheel (Specify)
Usage
To produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing.
Test standard
ASTM D1907 Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method
ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems
ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method
BS 2010 Method for determination of the linear density of yarns from packages
DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)
Features
1. Wrap reels available in Metric and English system.
2. Digital control panel with resettable revolution counter.
3. Equipped with a yarn-tensioning device.
4. Speed from 20 up to 250 r.p.m.
5. Six Skeins (lea/hank) can be made together.
6. Complete with all accessories.
7. Supplied with inspection & calibration certificates.
Technical parameter
| Number of leas made at a time | 6 |
| Spread of each lea | 60 mm |
| Swift/wheel circumference | 1.5 yards or 1 meter |
| Operating speed | 100 ± 2 rpm (20-250rpm adjustable) |
| .Digital Counter (Preset Type) | 0–9999,LED |
| Traverse motion | 35 ± 0.5 mm |
| Pre-tension | 0 -100 cN |
| Dimensions | 780 x 660 x 480 mm |
| Power supply | 220V,50Hz or 110V,60Hz |
| Weight | 53 Kg |
Accessories
| Main Unit | 01 No. |
| Power Cord | 01 No. |
| This User’s Manual | 01 No. |
