Electronic Auto Fatigue Test Machine for Abrasion Torsion Bending Tensile Strength Test Machine Haida

Brand Name:	Haida
Model Number:	HD-B604B-S
MOQ:	1
Price:	€3,319.11-5,239.82

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Ce,ISO

Frame Capacity:

2000kg

Load Accuracy:

0.5% F.S

Force Reading:

Kgf, Ibf, N, KN, T Etc

Vertical Test Space:

1200mm Including Fixture

Horizontal Test Space:

≤400mm

Test Speed:

0.1~500mm/min

Software:

TM 2101

Load Cell:

Germany Brand, 2000kg

Control System:

PC With Windows 7

Motor:

Panasonic Servo Motor

Drive System:

AC Variable Speed

Mechanical Component:

Ball Screw Rod

Curves Display:

Load-elongation, Elongation-time, Time-elongation, Stress-strain

Safety Features:

E-Stop, Over-load Protection, Limit Switches

Max Force:

20KN

Highlight:

Electronic auto fatigue test machine

Abrasion torsion bending tester

Tensile strength test machine with warranty

Product Description

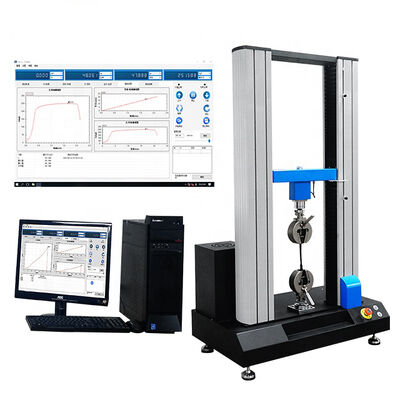

Electronic Auto Fatigue Test Machine

Universal testing machine for abrasion, torsion, bending, and tensile strength testing with 20KN maximum force capacity.

This fatigue test machine is a universal testing system designed to meet various material testing standards beyond metal materials. The equipment features a specialized detection operating system (TM2101 software) that connects to computers for real-time data monitoring during testing processes.

Key Features

Humanized industrial design with lightweight construction for easy mobility and tabletop placement
Capable of elongation, tensile, tear, peel, and bend testing with appropriate clamps
Compatible with fabric, textile, leather, paper, tape, film, and various other materials
Motor-driven screw mechanism for precise fixture movement
Germany brand load cell for high accuracy force measurement
Real-time force value display on PC screen with automatic data recording

Technical Specifications

Specification	Details
Frame Capacity	2000kg
Load Cell	Germany brand, 2000kg (500kg, 1000kg optional)
Load Accuracy	0.5% F.S
Control System	PC with Windows 7 system
Motor	Panasonic servo motor with AC variable speed drive system
Force Reading	kgf, lbf, N, KN, T etc
Vertical Test Space	1200mm including fixture
Horizontal Test Space	≤400mm
Test Speed	0.1~500mm/min (adjustable)
Software	TM 2101
Curves Display	Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data Display	Max. force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm2)
Safety Features	E-Stop, Over-load protection, Limit switches, Load sensor with automatic retreat

Applications

Material Testing: Laminated materials, wood, leather, rubber & plastic, metal materials
Test Types: Tensile, peel, tear, heat seal, adhesive, bend, and open force with appropriate grips
Deformation Testing: Measure deformation under defined load conditions
Load Testing: Measure load under defined deformation conditions
Reporting: Software generates Word/Excel reports with comprehensive test results
