Electronic 1000KN Rebar Tensile Testing Machine Horizontal Tensile Testing Machine Steel Bar Universal Tensile Testing Machine

Brand Name:	Haida
Model Number:	HD-B615-S
MOQ:	1
Price:	€4,192.56-6,016.31

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Test Speed:

10~200mm/min Selectable

Load Resolution:

1/100,000

Motor:

Servo Motor

Weight:

450kg

Display:

Unit Switchable:

G, KG, N, LB

Capacity:

200KN, 300KN

Stroke:

1000 Mm

Max Capacity:

300KN

Power:

Electronic

Accuracy:

±0.5%

Max Stroke:

1000mm (including Fixture)

Elongation Accuracy:

0.001mm

Screw:

High Precise Ball Screw

Power Supply:

AC220V,50HZ

Highlight:

1000KN rebar tensile testing machine

horizontal steel bar testing machine

universal tensile testing machine with warranty

Product Description

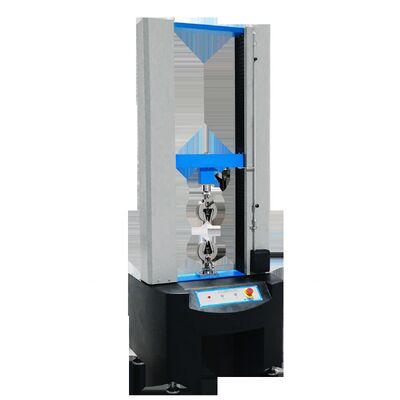

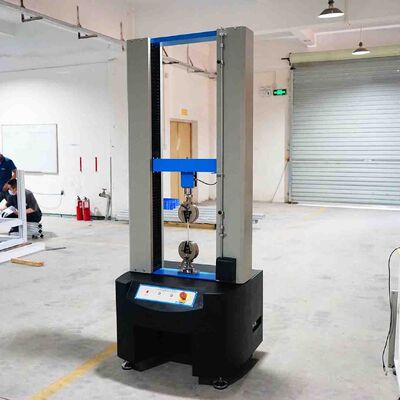

Electronic 1000KN Rebar Tensile Testing Machine

This horizontal tensile testing machine is designed for comprehensive testing of steel bars and various materials including tension, compression, shearing force, adhesion, peeling force, tear strength, and more. It serves as essential equipment for input quality control (I.Q.C), quality control (Q.C.), physical inspection, mechanics research, and material development across multiple industries.

Compliance Standards

ASTM D412, ISO 37-2005, JIS K6251, DIN 53504-2009: Tensile Strength & Elongation Test
ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test
ASTM D624-00, ISO 34-1: Tearing strength Test
ASTM D395-03, ISO 815-1: Compression Set Test
ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D
ASTM D573, ASTM D865, ISO188 Method B, DIN 53508: High/Low Temperature Test
ISO 2781(Method A): Density Test
ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter
ASTM D1646: Mooney Viscometer

Technical Specifications

Items	Specification
Sensor	Celtron load cell
Capacity	1000, 2000, 3000, 5000kg
Unit Switchover	G, KG, N, LB
Display Device	PC
Resolution	1/250,000
Accuracy	±0.5%
Max. Stroke	1000mm (including fixture)
Test Speed	0.1-300mm/min (adjustable)
Motor	Panasonic Servo Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	1, AC220V, 50HZ
Weight	Approx. 250kg

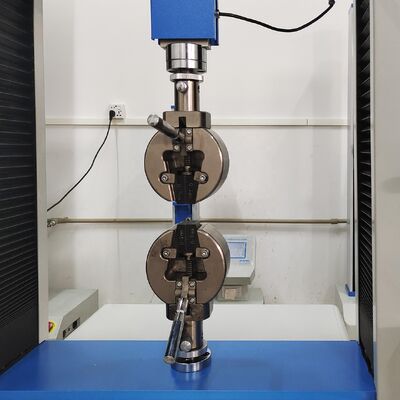

Accessories	One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual

Key Features

Windows platform with intuitive dialog box parameter settings
Single-screen operation without screen switching
Multi-language support: Simplified Chinese, Traditional Chinese, and English
Customizable test report patterns with direct data display
Translational and comparative modes for multiple curve data comparison
Multiple measurement units with imperial and metric switching
Self-return and auto-correction functions
Automatic magnification for optimal graphic sizing

Custom Fixture Solutions

Haida provides comprehensive fixture customization services to meet all customer testing requirements and applications.

Tensile Testing Applications

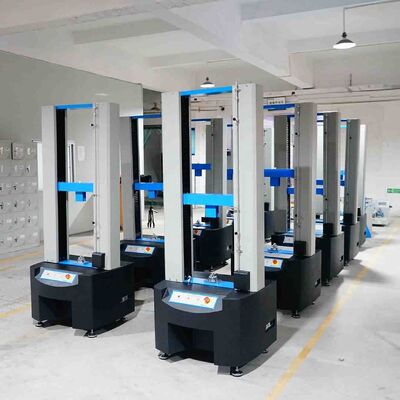

Manufacturer Information

HAIDA INTERNATIONAL is a professional manufacturer of various testing equipment with over 20 years of industry experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, serving scientific research units, quality inspection institutions, and academic fields.
