Strength Tester Meter Compression and Elongation Test Adhesion Rebar Push Pull Tensile Universal Testing Measuring Machine

Brand Name:	Haida
Model Number:	HD-B604-S
MOQ:	1
Price:	$4,000-5,500

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Power:

1 Phase, 220V /50HZ

Load Resolution:

1/250,000

Load Accuracy:

± 0.5%

Motor:

Servo Motor

Test Speed:

0.1-500mm/min

Frame Capacity:

2000kg

Load Cell:

Germany Brand

Control System:

PC With Windows 7

Force Reading:

Kgf, Ibf, N, KN, T

Vertical Space:

1200mm

Horizontal Space:

≤400mm

Software:

TM 2101

Safety Features:

E-Stop, Over-load Protection, Limit Switches

Screw Type:

High Precise Ball Screw

Driver:

High Precision Ball Screw

Highlight:

universal tensile testing machine

rebar push pull strength tester

compression elongation adhesion meter

Product Description

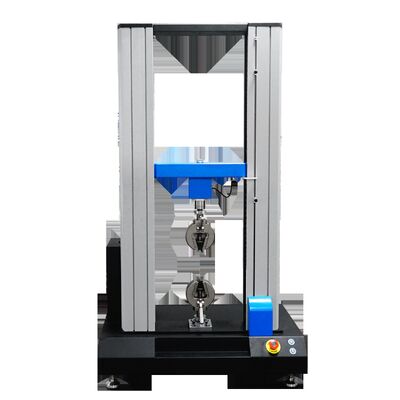

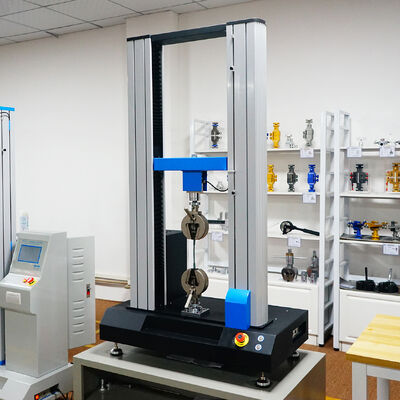

Computerized Double Column Tensile Testing Machine

This advanced testing equipment is designed to evaluate the mechanical properties of various materials through static load, tensile, compression, bending, shearing, tearing, and peeling tests. Ideal for plastic plates, pipes, profiles, plastic films, rubber, wires, cables, steel, fiberglass, and other materials requiring comprehensive physical and mechanical performance analysis.

Technical Specifications

Frame capacity	2000kg
Load cell brand	Germany brand load cell for high accuracy (500kg, 1000kg optional)
Load accuracy	0.5% F.S
Control system	PC with Windows 7 system
Motor	Panasonic servo motor with AC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, lbf, N, KN, T etc
Vertical test space	1200mm including fixture
Horizontal test space	≤400mm
Test speed	0.1~500mm/min (adjustable)
Software	TM 2101

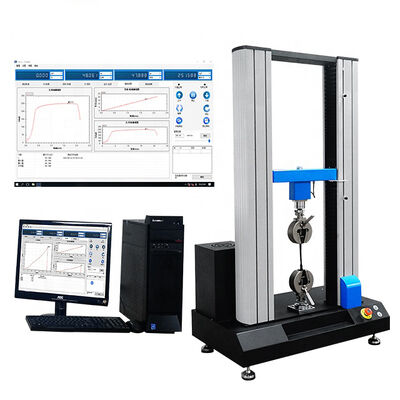

Software Capabilities

Curves Display

Load-elongation, Elongation-time, Time-elongation, Stress-strain

Data Display

Maximum force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm²) and more

Reporting Features

Software generates Word/Excel reports with results for maximum force, elongation, tensile strength, peel strength, tear strength, compression strength, and other critical metrics.

Safety Features

Emergency Stop (E-Stop)
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat

Applications

Tested materials: laminated materials, wood, leather, rubber & plastic, metal materials, etc.

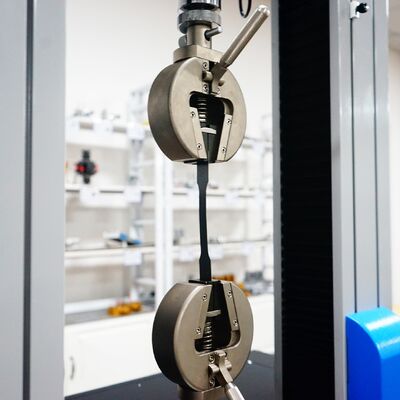

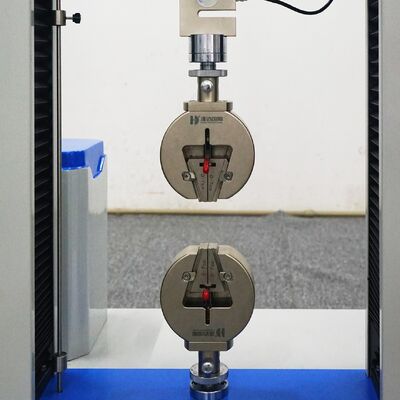

Various tests with specialized grips: tensile, peel, tear, heat seal, adhesive, bend, and open force
Deformation under defined load: Measure deformation of tested samples under specific load conditions
Load under defined deformation: Determine load requirements for specific deformation parameters

Customized Fixtures

Haida provides comprehensive fixture customization services to meet all customer testing requirements and specific application needs.
