Single Column Computer Control Electronic Tensile Strength test Machine

Brand Name:	haida
Model Number:	HD-B609
MOQ:	1
Price:	$1,499

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Frame Capacity:

2000kg

Load Accuracy:

0.5% F.S

Control System:

PC With Windows 7 System

Force Reading:

Kgf, Ibf, N, KN, T Etc

Vertical Test Space:

1200mm Including Fixture

Horizontal Test Space:

≤400mm

Test Speed:

0.1~500mm/min

Software:

TM 2101

Load Cell Brand:

Germany Brand Load Cell

Motor Type:

Panasonic Servo Motor

Drive System:

AC Variable Speed Drive System

Mechanical Component:

High-precision Ball Screw Rod

Curves Display:

Load-elongation, Elongation-time, Time-elongation, Stress-strain

Data Display:

Max. Force, Speed, Sample Information, Strength(Kpa, Mpa, N/mm, N/mm2)

Safety Features:

E-Stop, Over-load Protection, Upper/lower Limit Switches, Load Sensor Auto-retreat

Highlight:

Single column tensile strength test machine

Computer control tensile testing machine

Electronic tensile strength tester

Product Description

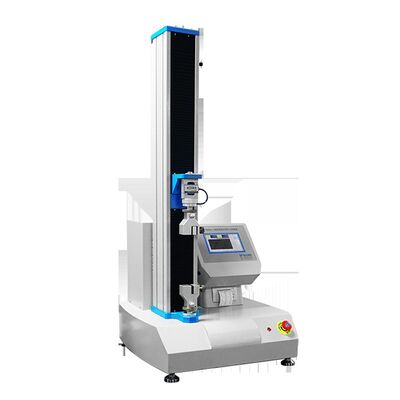

Single Column Computer Control Electronic Tensile Strength Test Machine

The single column computer control electronic tensile strength test machine is a precision mechanical testing instrument designed for static load applications including tension, compression, bending, shear, tearing, and peeling tests of various materials.

This universal tensile test machine is engineered for comprehensive physical and mechanical performance testing of plastic sheets, pipes, profiled materials, plastic films, rubber, wire and cable, steel, glass fiber, and other materials. It serves as essential testing equipment for material research, educational institutions, quality control laboratories, and manufacturing facilities. The machine features specialized fixtures tailored to different materials, ensuring accurate test results and reliable performance.

Standard Technical Specifications

Feature	Specification
Frame Capacity	2000kg
Load Cell	German brand load cell for high accuracy, 2000kg (500kg, 1000kg optional)
Load Accuracy	0.5% F.S
Control System	PC with Windows 7 system
Motor System	Panasonic servo motor with AC variable speed drive system, high-precision mechanical ball screw rod
Force Reading Units	kgf, lbf, N, kN, T, etc.
Vertical Test Space	1200mm including fixture
Horizontal Test Space	≤400mm
Test Speed Range	0.1~500mm/min (adjustable)
Software	TM 2101
Curves Display	Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data Display	Maximum force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm²), etc.
Safety Features	Emergency stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
