100kn Computer Electronic Laboratory Universal Testing Machine and Pressure Material Strength Tension Test Machine

Brand Name:	Haida
Model Number:	HD-B612-S
MOQ:	1
Price:	€4,367.24-6,375.30

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE,ISO

Frame Capacity:

10T

Load Accuracy:

0.5% F.S

Control System:

PC With Windows 7 System

Force Reading:

Kgf, Ibf, N, KN, T Etc

Vertical Test Space:

1100mm Including Fixture

Horizontal Test Space:

≤400mm

Test Speed:

0.1~300mm/min

Software:

TM 2101

Displacement Resolution:

0.001mm

Max. Stroke:

1100mm (excluding Fixture)

Elongation Accuracy:

0.001mm

Power:

1 ø, AC220V, 50HZ

Weight:

Approx.600kg

Motor:

Panasonic Servo Motor

Screw:

High Precise Ball Screw

Highlight:

100kn universal testing machine

electronic laboratory tension test machine

material strength pressure tester

Product Description

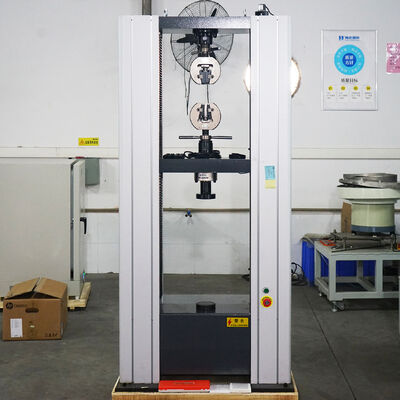

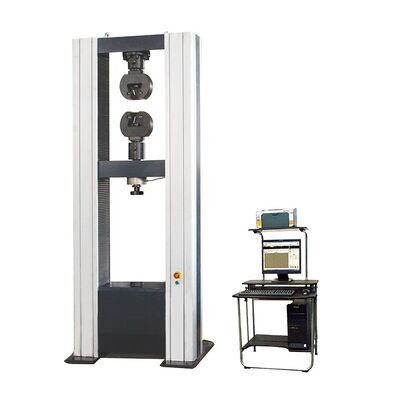

100kN Computer Electronic Laboratory Universal Testing Machine

A precision mechanical testing instrument designed for comprehensive material strength analysis including tension, compression, bending, shear, tearing, and peeling tests.

Product Overview

This universal materials testing machine is engineered for static load testing and comprehensive mechanical property analysis. It is ideal for testing plastic sheets, pipes, profiles, plastic films, rubber, wires and cables, steel, glass fibers, and various other materials. Essential for material development, physical testing, teaching research, and quality control applications.

Key Features

Motor System: Panasonic servo motor with servo driver and high-precision ball screw (Taiwan)
Control System: Computer-controlled with TM2101 software, automatic return to origin after testing
Data Transmission: RS232 interface
Displacement Resolution: 0.001mm precision
Automatic graph scaling with dynamic switching between force-elongation, force-time, elongation-time, and stress-strain displays
Comprehensive data recording including maximum force, yield strength, compressive strength, tensile strength, elongation, and peel interval analysis
Customizable material parameters including length, width, thickness, radius, and area
Multi-language support: Simplified Chinese and Traditional Chinese

Technical Specifications

Sensor	Celtron load cell
Unit Switchover	G, KG, N, LB
Display Device	PC
Resolution	1/250,000
Accuracy	±0.5%
Max. Stroke	1100mm (excluding fixture)
Test Speed	0.01-500mm/min (adjustable)
Motor	Panasonic Servo Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	1 ø, AC220V, 50HZ
Weight	Approx. 600kg

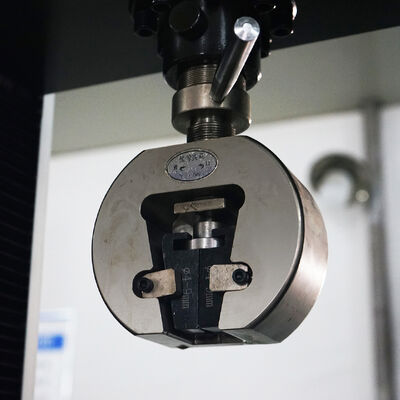

Accessories	One set tensile clamp, one set Lenovo computer, English software CD, operation video CD, English user manual

Applications

Tested Samples: Laminated materials, wood, leather, rubber & plastic, metal materials
Various Test Types: Tensile, peel, tear, heat seal, adhesive, bend, and open force testing with specialized grips
Deformation Analysis: Measure deformation under defined load conditions
Load Measurement: Test load under defined deformation parameters
Reporting: Software generates Word/Excel reports with comprehensive results including maximum force, elongation, tensile strength, peel strength, tear strength, and compression strength
