Electronic Computer Universal Tensile Testing Machine Price Strength Test 1000KN

Brand Name:	Haida
Model Number:	HD-B615-S
MOQ:	1
Price:	$5,000

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE,ISO

Frame Capacity:

100kg-5T

Load Accuracy:

0.5% F.S

Control System:

PC With Windows 7 System

Force Reading:

Kgf, Ibf, N, KN, T Etc

Vertical Test Space:

1000mm Including Fixture

Horizontal Test Space:

≤420mm

Test Speed:

0.1~300mm/min

Software:

TM 2101

Power:

Electronic

Load Cell Brand:

Germany Brand Load Cell

Motor:

Panasonic Servo Motor W/AC Variable Speed Drive System

Mechanical Screw:

High-precision Mechanical Ball Screw Rod

Curves Display:

Load-elongation, Elongation-time, Time-elongation, Stress-strain

Data Display:

Max. Force, Speed, Sample Information, Strength (Kpa, Mpa, N/mm, N/mm2)

Safety Features:

E-Stop Over-load Protection, Upper And Lower Limit Switches, Load Sensor With Automatic Retreat

Highlight:

1000KN tensile testing machine

universal tensile strength tester

electronic computer testing machine

Product Description

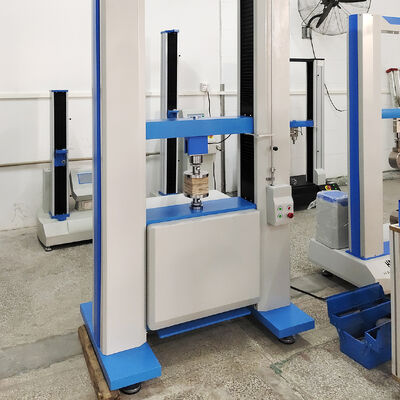

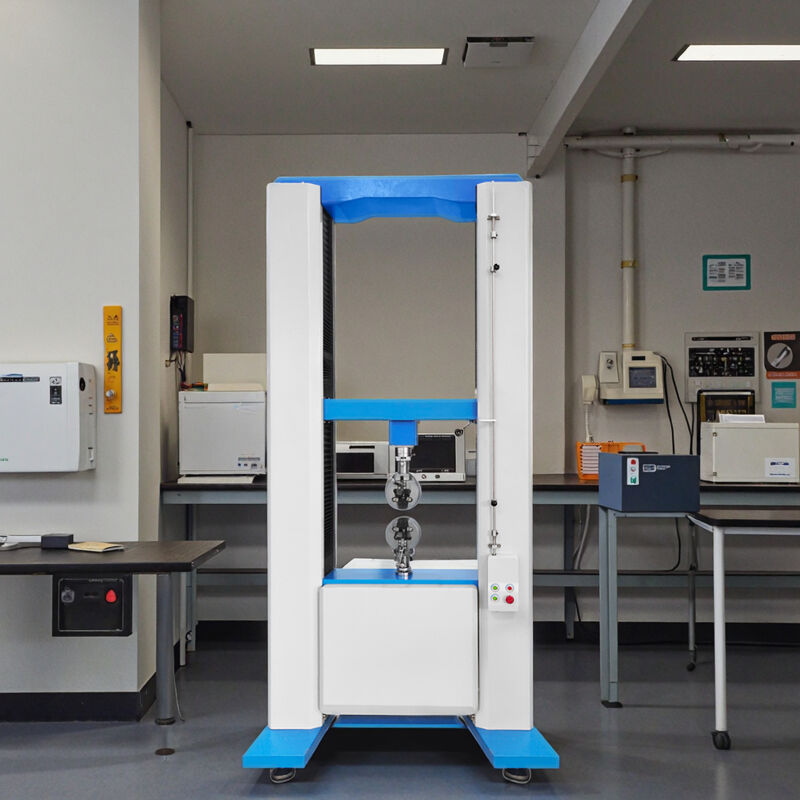

Electronic Computer Universal Tensile Testing Machine - 1000KN Capacity

The Electronic Computerized Universal Testing Machine features an intelligent computer test system for comprehensive materials testing. Operators can monitor real-time data through the PC interface including curve processes, multi-sensor support, graphical interfaces, flexible data processing, and powerful system functionality.

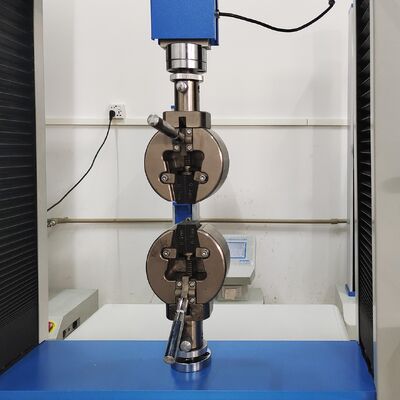

This universal test machine utilizes a motor-driven screw system to move fixtures. Samples are secured between upper and lower fixtures and pulled upward at specified speeds. The integrated load cell connected to the upper fixture detects force and converts it into voltage signals displayed on the screen, with force values automatically calculated and displayed.

Testing Capabilities

General Test Projects

Tensile stress and tensile strength
Tearing strength and breaking elongation
Fixed extension stress and constant stress elongation
Constant stress values and tearing strength
Arbitrary point force values and elongation measurements
Pulling force, adhesion, and peak value analysis

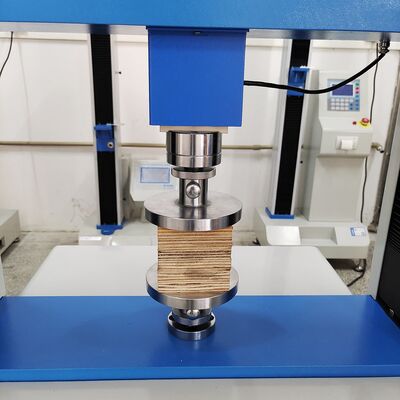

Pressure testing and shear stripping force testing
Bending tests and pulling force puncture testing

Specialized Test Items

Elasticity coefficient and Young's modulus definition
Ratio limit and elastic limit measurements
Elastic deformation and permanent deformation analysis
Yield point and yield strength determination
Spring K value calculations

Technical Specifications

Design Standards: ASTM, JIS, CE, ISO, EN, BS EN, SAE, FTM, and more

Specification	Description
Frame Capacity	100kg-5T (custom options available)
Load Cell Brand	German brand load cell for high accuracy 5000kg (1000kg, 2000kg optional)
Load Accuracy	0.5% F.S
Control System	PC with Windows 7 system
Motor System	Panasonic servo motor with AC variable speed drive system, high-precision mechanical ball screw rod
Force Reading Units	kgf, lbf, N, KN, T, etc.
Vertical Test Space	1000mm including fixture
Horizontal Test Space	≤420mm
Test Speed Range	0.1~300mm/min (adjustable)
Software	TM 2101
Curves Display	Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data Display	Maximum force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm²), etc.
Safety Features	E-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat

Manufacturer Information

HAIDA INTERNATIONAL is a professional manufacturer of various testing equipment with over 20 years of industry experience. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products, and other industries. Our equipment is suitable for all scientific research units, quality inspection institutions, and academic fields.
