Electronic High Temperature Tensile Strength Tester Universal Material 500kn Tensile Testing Machine

Brand Name:	Haida
Model Number:	HD-B616S
MOQ:	1
Price:	$8,999

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Power Supply:

380V, 50Hz

Measure Range:

2%-100%F.S

Load Accuracy:

1% F.S

Test Speed:

50mm/min

Flat Sample Thickness:

0-15 Mm

Flat Sample Width:

70mm

Operation Control:

Hydraulic

Display:

Frame Capacity:

30T

Available Tensile Stroke:

550mm

Available Compression Stroke:

450mm

Round Sample Diameter:

Φ10-φ32mm

Compression Diameter:

Φ120mm

Load Cell Brand:

Oil Pressure Sensor, China Brand 30T

Safety Features:

E-Stop Over-load Protection Upper And Lower Limit Switches Load Sensor With Automatic Retreat

Highlight:

500kn tensile testing machine

high temperature tensile strength tester

universal material tensile testing machine

Product Description

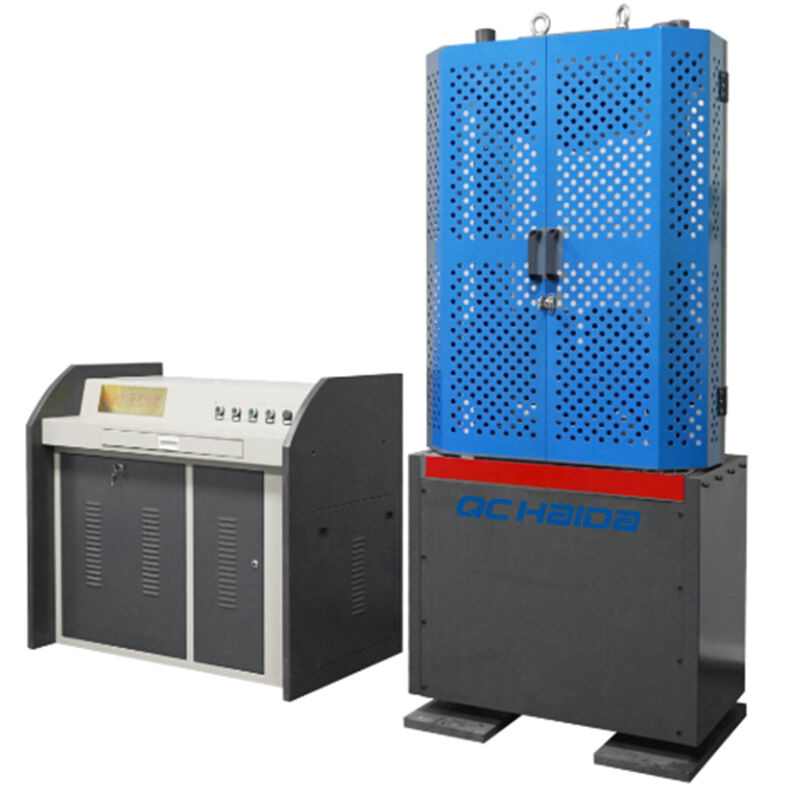

Electronic High Temperature Tensile Strength Tester

Universal Material 500kN Tensile Testing Machine

The Universal Tensile Testing Machine is designed for tensile, compression, bending, and shear testing of metal materials and components. It also supports testing of non-metallic materials including plastics, concrete, and cement. The system features a lower cylinder main engine, original brand microcomputer, and powerful Chinese window software for comprehensive data analysis and processing.

Equipped with an electro-hydraulic proportional microcomputer control system and microcomputer automatic control display, the measurement system consists of high-precision load sensors and imported components. Combined with computer and software systems, it offers automatic calibration of load and deformation, automatic range switching, automatic storage of test conditions and results, and automatic calculation of parameters including Fm, ReH, ReL, RP0.2, Rm, and elastic modulus E.

The software provides test curve traversal, partial enlargement, and superimposed comparison functions, with capability to print complete test reports and test curves.

Applications

Tested samples: wood, steel sheet, steel rod, wire, screw, and other metal materials
Different tests with specialized grips: tensile, bend, compression, and shear testing
Software generates comprehensive reports with results for maximum force, elongation, tensile strength, compression strength, bend strength, and more

Standard Features & Specifications

Frame Capacity	30T
Measure Range	2%-100% F.S
Load Cell Brand	Oil pressure sensor, China brand 30T (5T, 10T, 20T optional)
Load Accuracy	1% F.S
Available Tensile Stroke	550mm
Available Compression Stroke	450mm
Test Speed	50mm/min
Round Sample Diameter	Φ10-φ32mm
Flat Sample Thickness	0-15mm
Flat Sample Width	70mm
Compression Diameter	Φ120mm
Operation Control	Hydraulic
Display	PC
Curves Display	Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data Display	Max. force, speed, sample information, strength, etc.
Safety Features	E-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
