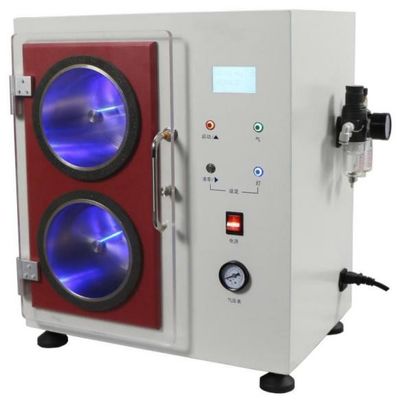

ASTM D3512 Random Tumble Pilling Tester For Woven/Knitted Fabrics 1200rpm Speed

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008
Model Number: HD-W128-2
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Length Of Impeller: 121mm
Timer: Up To 99 Min And 59 S Dimensions: 550 X 380 X 550 Mm
Net Weight: 65kg Compressed Air Injection: 14kPa - 21kPa (2 - 3 Psi)
High Light:

ASTM D3512 Abrasion Testing Equipment

,

14kPa Abrasion Testing Equipment

,

ASTM D3512 Tumble Pilling Tester


Product Description

ASTM D3512 Random Tumble Pilling Tester For Woven/Knitted Fabrics 1200rpm Speed







Test standards



ASTM D3512 Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Random Tumble Pilling Tester

ISO 12945-3 Textiles- Determination of the fabric propensity to surface pilling, fuzzing or matting

Part 3: Random tumble pilling method

JIS L 1076 Testing methods for pilling of woven fabrics and knitted fabrics

DIN 53867 Testing of textile fabrics; determination of pilling with the Random-Tumble-Pilling-Tester







Introduction



Random tumble pilling tester to determine the pilling and fuzzing characteristics of textile fabrics.







Technical parameter:



Technical Index HD-W128-2 HD-W128-4
Number of Chambers 2 Nos. 4 Nos.
Size of chamber 146mm (inside diameter) x 152mm (length)
Length of impeller 121mm
Number of samples 12 (3 in each compartment)
Impeller rotation speed 1200 ± 10 rpm
Timer up to 99 min and 59 s
Compressed air injection 14kPa - 21kPa (2 - 3 Psi)
Cork sheet 1.5mm (thickness) x 148mm (width) x 452mm (length)
Chloroprene sheet (optional) 3mm (thickness) x 452mm (length), 47±3° (in hardness)
Dimensions 550 x 380 x 550 mm 700 x 400 x 550 mm
Power supply 220V, 50Hz or 110V, 60Hz,90W
Net Weight 65kg 80kg







FAQ



What is the order process?


Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.


Do you accept customization service?


Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



How about the packing for machine, is it safely protected during transportation?


Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
