220V Automatic Wrap Reel Machine ,Textile Testing Equipment For Testing Yarn

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W807
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Weight: 53 Kg
Dimensions: 780 X 660 X 480 Mm Pre-tension: 0 -100 CN
Traverse Motion: 35 ± 0.5 Mm Digital Counter: 0–9999,LED
Spread Of Each Lea: 60 Mm Number Of Leas: 6
High Light:

Yarn Wrap Reel


Textile Wrap Reel


Wrap Reel Machine

Product Description

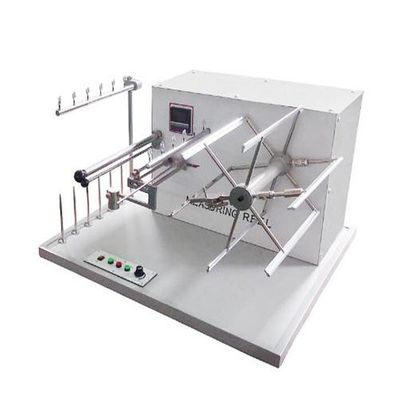

220V Automatic Wrap Reel Machine ,Textile Testing Equipment For Testing Yarn





Automatic Wrap Reel Machine is an ideal equipment to produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing. Supplied with 1 meter or 54 Inches Collapsible arm Swift/wheel (Specify).To produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing.

 Automatic Wrap Reel Tester


Test Standard


ASTM D1907 Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method

ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems

ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method

BS 2010 Method for determination of the linear density of yarns from packages

DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)


Technical Parameter


Technical Index HD-W807
Number of leas made at a time 6
Spread of each lea 60 mm
Swift/wheel circumference 1.5 yards or 1 meter
Operating speed 100 ± 2 rpm (20-250rpm adjustable)
Digital Counter (Preset Type) 0–9999,LED
Traverse motion 35 ± 0.5 mm
Pre-tension 0 -100 cN
Dimensions 780 x 660 x 480 mm
Power supply 220V,50Hz
Weight 53 Kg




1. Wrap reels available in Metric and English system.

2. Digital control panel with resettable revolution counter.

3. Equipped with a yarn-tensioning device.

4. Speed from 20 up to 250 r.p.m.

5. Six Skeins (lea/hank) can be made together.

6. Complete with all accessories.

7. Supplied with inspection & calibration certificates.




What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.


How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
