| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W825 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Measuring Range: | 500pa-200kpa |
|---|---|---|---|
| Water Pressure Rise Rate: | 10 Or 60 CmH2O/min | Accuracy: | 0.2%FS |
| Sample Chuck Area: | 100cm² | Water Tank Capacity: | 3.7Ld |
| Weight: | 50kg | Power Source: | 1phase, AC220± 10%, 50 Hz |
| High Light: | AATCC 127 tensile strength testing machine,200kpa tensile strength testing machine,200kpa hydrostatic head tester |
||

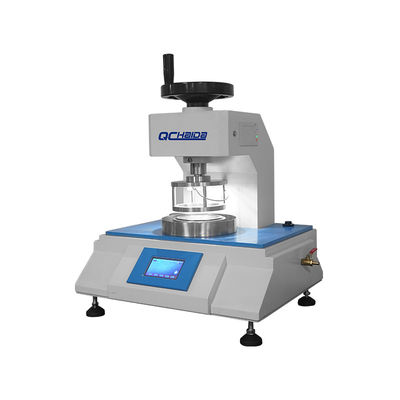

Fabric Hydrostatic Head Pressure Tester,
Textile Water Permeability Tester Factory Hydrostatic Pressure Test Equipment
Features
1. This instrument is controlled by microcomputer, digital display, using high precision pressure sensor
2. The cloth sample clamping device is made of high quality stainless steel.
3. Select high-precision pressure sensor, the measurement result is accurate, stable and reliable.
4. The instrument is easy to operate and convenient
Hydrostatic Head Tester Testing standard
AATCC 127 DIN 53886 JIS L1092 EN ISO 20811 ISO 811
Technical Parameters
| Technical Index | HD-W825 |
| Measuring range | 500pa-200kpa |
| Water pressure rise rate | 10 or 60 cmH2O/min |
| Accuracy | 0.2%FS |
| Unit | cmH2O, Pa, kPa, mmHg, mmH2O, PSI, Bar (optional) |
| Sample chuck area | 100cm² |
| Water tank capacity | 3.7Ld |
| Extarnal Dimensions | 600x460x680mm |
| Weight | 50kg |
| Power source | 1phase, AC220± 10%, 50 Hz |
| Test methods | Boost test, Constant pressure timing test, Water leakage test, Deflection test |
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
Application Industries:
Canvas Coated fabrics Non-woven fabrics
Rain-proof Fabrics hood fabric Geotextiles
About us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
