| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | ISO 9001:2000; ISO 9001:2008 |
| Model Number: | HD-W128-2 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Length Of Impeller: | 121mm |
|---|---|---|---|
| Timer: | Up To 99 Min And 59 S | Dimensions: | 550 X 380 X 550 Mm |
| Net Weight: | 65kg | Compressed Air Injection: | 14kPa - 21kPa (2 - 3 Psi) |
| High Light: | ASTM D3512 Abrasion Testing Equipment,14kPa Abrasion Testing Equipment,ASTM D3512 Tumble Pilling Tester |
||

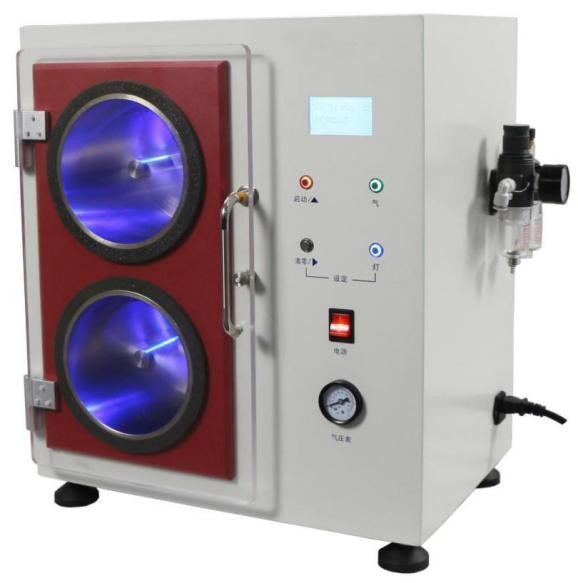

ASTM D3512 Random Tumble Pilling Tester For Woven/Knitted Fabrics 1200rpm Speed
Test standards
ASTM D3512 Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Random Tumble Pilling Tester
ISO 12945-3 Textiles- Determination of the fabric propensity to surface pilling, fuzzing or matting
Part 3: Random tumble pilling method
JIS L 1076 Testing methods for pilling of woven fabrics and knitted fabrics
DIN 53867 Testing of textile fabrics; determination of pilling with the Random-Tumble-Pilling-Tester
Introduction
Random tumble pilling tester to determine the pilling and fuzzing characteristics of textile fabrics.
Technical parameter:
| Technical Index | HD-W128-2 | HD-W128-4 |
| Number of Chambers | 2 Nos. | 4 Nos. |
| Size of chamber | 146mm (inside diameter) x 152mm (length) | |
| Length of impeller | 121mm | |
| Number of samples | 12 (3 in each compartment) | |
| Impeller rotation speed | 1200 ± 10 rpm | |
| Timer | up to 99 min and 59 s | |
| Compressed air injection | 14kPa - 21kPa (2 - 3 Psi) | |
| Cork sheet | 1.5mm (thickness) x 148mm (width) x 452mm (length) | |
| Chloroprene sheet (optional) | 3mm (thickness) x 452mm (length), 47±3° (in hardness) | |
| Dimensions | 550 x 380 x 550 mm | 700 x 400 x 550 mm |
| Power supply | 220V, 50Hz or 110V, 60Hz,90W | |
| Net Weight | 65kg | 80kg |
FAQ
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
