ISO 105- E04 Color Fastness Tester For Textiles And Leather

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008
Model Number: HD-W809
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Dimensions: 240 X 100 X 160 Mm Number Of Separator Plates: 21 + 21 No’s
Use: Textiles, Leather Size Of Test Specimen: 100 X 40 Mm
High Light:

color fastness tester

,

ISO 105- E04 color fastness tester

,

ISO 105- E04 perspiration tester


Product Description

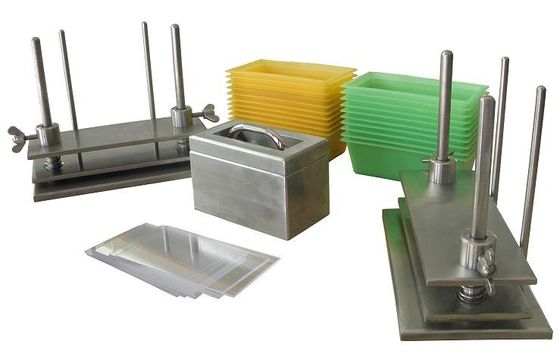

ISO 105- E04 Color Fastness Tester For Textiles And Leather







Testing standard



UNI EN ISO 105- E04; BS 1006; BS EN 20105; AATCC 15; IWS TM 175







Test procedure



To test colour fastness to perspiration, specimens (fabric, yarn or fibre) in contact with Multifibre Adjacent Fabric, are treated in two different solutions containing histidine, one alkaline and one acidic. The specimens are subsequently drained and placed under constant pressure between separator plates in the Perspirometer. Up to 20 test specimens can be accommodated.

The units are then placed in an Incubator for 4 hours at 37˚C (body heat). ( need equip with dry oven)

After drying, change in colour of the specimens and staining of the adjacent fabrics are assessed with Grey Scales.

Separate Perspirometer units must be used for alkaline and acidic tests to avoid chemical interaction.







Technical parameters



Technical Index HD-W809
Frame construction Special stainless steel (grade 316)
Load on the test specimen(as per ISO/AATCC) 5 kg/10 lb
Size of test specimen 100 x 40 mm
Size of acrylic separator plate (each) 115 x 60 mm
Number of separator plates 21 + 21 No’s
Dimensions 240 x 100 x 160 mm





ISO 105- E04 Color Fastness Tester For Textiles And Leather 0
