| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W835 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Range: | 0 ~ 1000g |
|---|---|---|---|
| Test Speed: | 1 ~ 40mm/s, Arbitrary Settings | Dimensions: | 500 X 400 X 600 Mm |
| Source: | 220V, 50Hz | Printing System: | Embedded Thermal Printer |
| High Light: | Electronic Power Specific Absorbency Testing Tester,999s Absorbency Testing Tester |
||

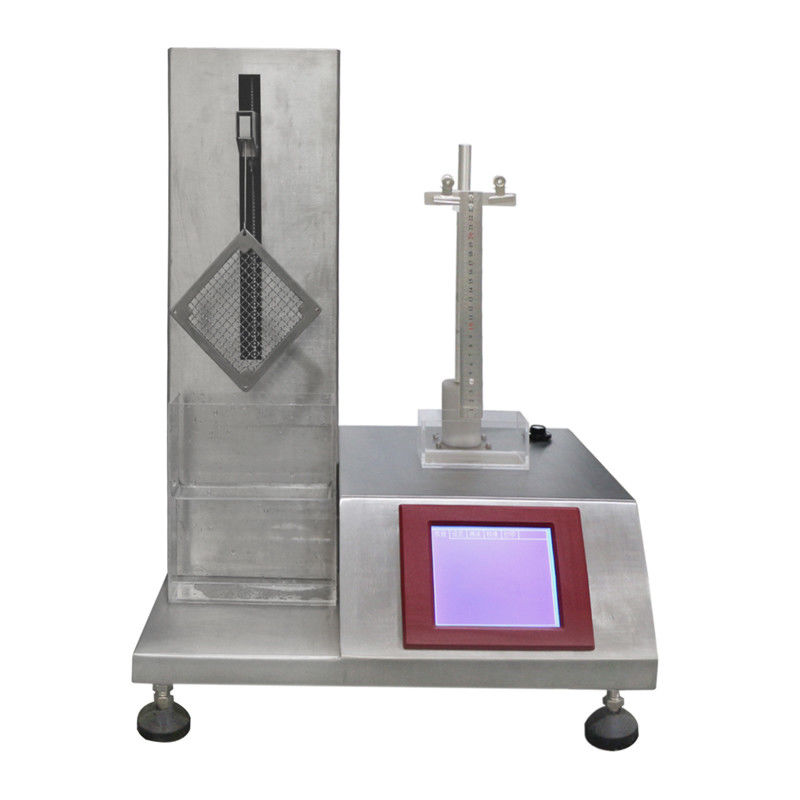

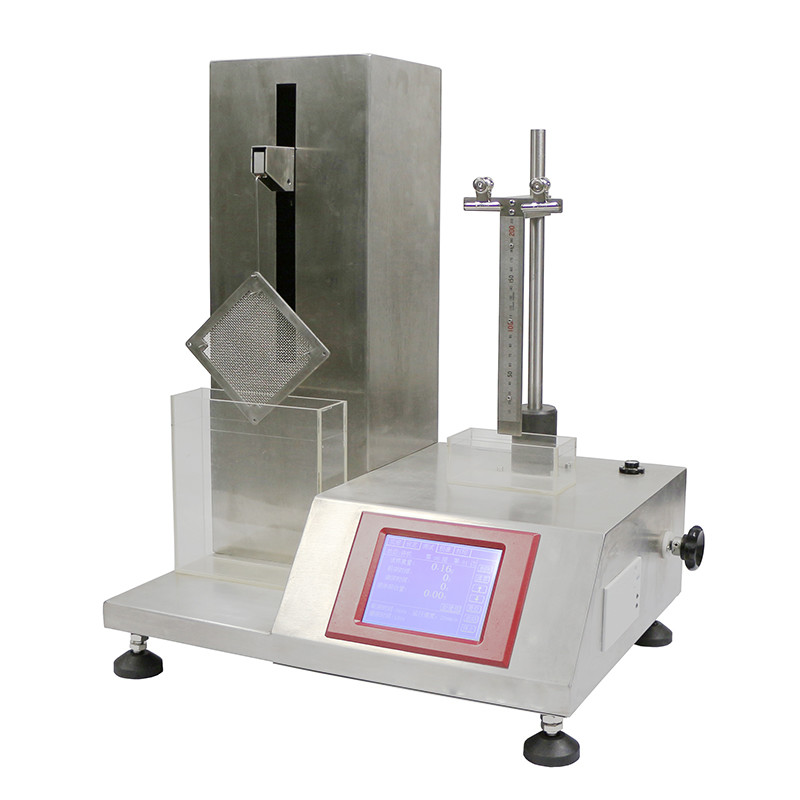

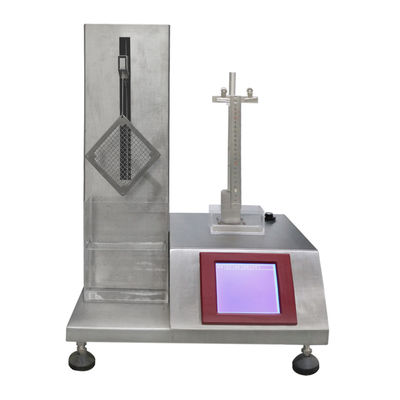

220V 50Hz Electronic Power Specific Absorbency Testing Tester Arbitrary Settings
STANDARD PARAMETERS
| Technical Index | HD-W835 |
| Range | 0 ~ 1000g |
| Test speed | 1 ~ 40mm/s, arbitrary settings |
| Liquid drop time | 0 ~ 999s, arbitrary settings |
| Sample size | 100 x 100mm |
| Printing system | embedded thermal printer |
| Dimensions | 500 x 400 x 600 mm |
| Weight | 25kg |
| Power source | 220V, 50Hz |
DESIGN STANDARD
ISO 9073-6:2000 Textiles - Test methods for non-woven Part 6: Absorption
PRODUCT DESCRIPTION
Test methods for the evaluation of some aspects of the behaviour of non-woven fabricsion the presence of liquids. In particular(the liquid absorbency time; the liquid absorptive capacity; the liquid wicking rate).
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
