USB2.0 Thread Density Counter/Fabric Density Meter/Fabric Density Test Meter

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W125
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Magnification Times Of Camera: 1~50 Times
Sample Type: Woven Fabric, Knitted Fabric Measurement Direction: Vertical And Horizontal
Light Source: LED Connect: USB2.0
Dimension: 11cm(L)*11cm(W)*13cm(H) Weight: 600g
High Light:

13cm height Fabric Density Meter


ISO Fabric Density Meter


11cm width Fabric Density Meter

Product Description

USB2.0 Thread Density Counter/Fabric Density Meter/Fabric Density Test Meter

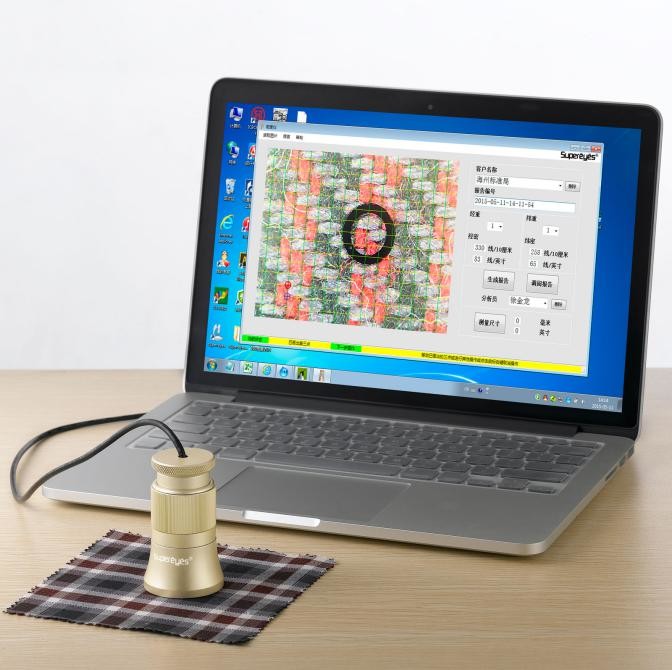

Thread Density Counter is used to determine the thread density of woven fabrics and loop density of knitted fabrics. Equipped with a portable high-precision camera to capture and magnify pictures of fabrics,the number of threads or loops on captured pictures can be counted easily on the screen of the computer by the software.





Fabric Density Meter, to determine the thread density of woven fabrics and wire meshes as well as the loop density of knitted fabrics.





1. Chinese or English interface can be optional.

2. After the fabric image is amplified, calculated the density by specific software, to solve the traditional problem that caused visual fatigue by observing by human eyes.

3. Portable camera with USB interface can be directly connected with computer;

4. "Automatic Identification", "logo identification", "artificial recognition" three test functions are available to ensure different fabric can be measured.

5. Software has a calibration memory function, user can recognize different image on the same cloth.

6. After calibration, the software automatically shows a standard line, to verify if the calibration from user is accurate.



Technical Parameters


Technical Index HD-W125
Magnification times of camera 1~50 times
Measurement method 5threads/each or 10threads/each
Sample type woven fabric, knitted fabric
measurement direction Vertical and horizontal
Display threads/10mm and threads/inch
pixel 2MP,1600x1200,640x480.320x240
light source Windows7/Xp/Vista/Mac OS/Linux
light source LED
Connect USB2.0
Dimension 11cm(L)*11cm(W)*13cm(H)
Weight 600g


How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
