2000kPa Automatic Hydraulic Bursting Tester Strength Testing Machine For Textile

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W813
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Air Requirements: 600-800kPa
Dimensions: 550 X 450 X 700 Mm Safety Sensor: Over Scale Auto-stop
Pressure Measurement Range: 2000kPa, L/C : 1kPa Use: Textiles,Non-wovens
High Light:

2000kPa Hydraulic Bursting Tester


Textile Hydraulic Bursting Tester


Non Wovens Hydraulic Bursting Tester

Product Description

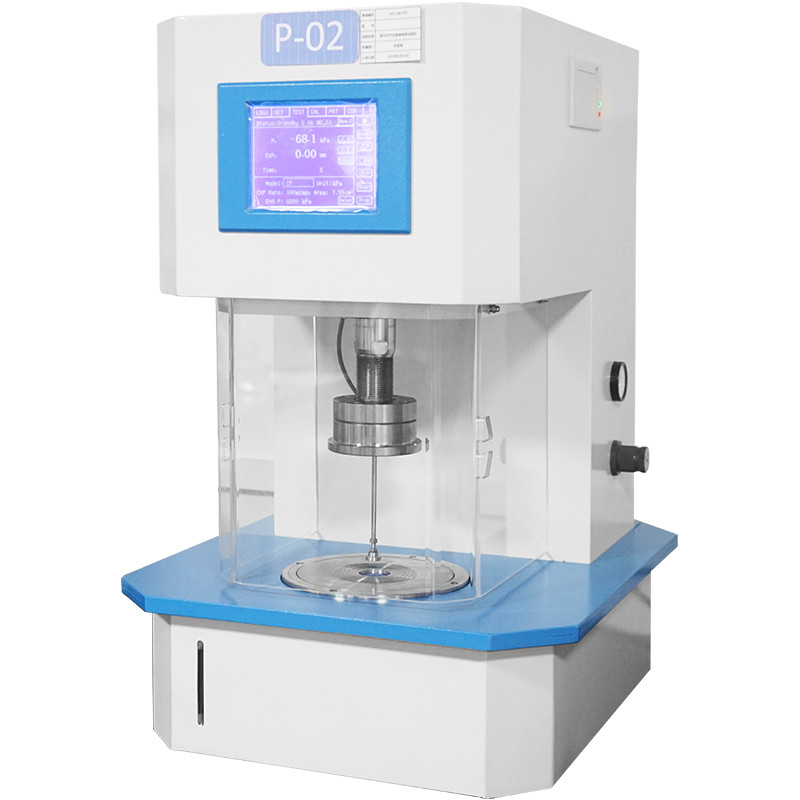

2000kPa Automatic Hydraulic Bursting Tester/Blasting Strength Testing Machine For Textile





Testing standard


ASTM D 3786,BS 4768 ,ISO 13938-1,ISO 2758,ISO 2759





Hydraulic Bursting Tester is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. This tester is fully automatic-type rupture strength tester, Just put into the testing material, the tester automatically detect, automatic testing, automatic hydraulic recoil and automatic computing, storage testing data and printing. It is an important tester for controlling quality of finished product and quality inspection.




Technical details


Technical Index HD-W813
Pressure measurement range 2000kPa, L/C : 1kPa
Distension measurement range Up to 75 ± 0.02 mm
Measuring areas 7.55cm² (Ø 31mm) and 50cm² (Ø 79.8mm)
Unit of measurement kPa - kgf/cm² - mmHg - lb/in² - atm
Test methods Constant Rate - Constant Pressure - Constant Distension –Timing
Hydraulic system rate of flow (adjustable) 20-600mL/min
Hydraulic oil Glycerine 85%, distilled water 15%
Safety sensor Over scale auto-stop
Diaphragm rubber thick ≤ 2 mm
Data port RS232 port for printer connection and 3 pin Mini-DIN connector for PC
Dimensions 550 x 450 x 700 mm
Power supply 220V,50Hz
Air requirements 600-800kPa
Net Weight 125kg
hydraulic bursting tester      hydraulic bursting tester    hydraulic bursting tester
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
