| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-E805 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Supply Source: | Single-phase, 220V, 50Hz |
|---|---|---|---|
| Temperature Range: | Max. 1200℃ | Temperature Precision: | +/- 5°C |
| Heating Element: | Thermal Fuse | Furnace Materials: | Aluminium Oxide |
| Use: | Fabrics, Leather | ||
| High Light: | 1200degree high temperature muffle furnace,220V high temperature muffle furnace,120degree laboratory muffle furnace |
||

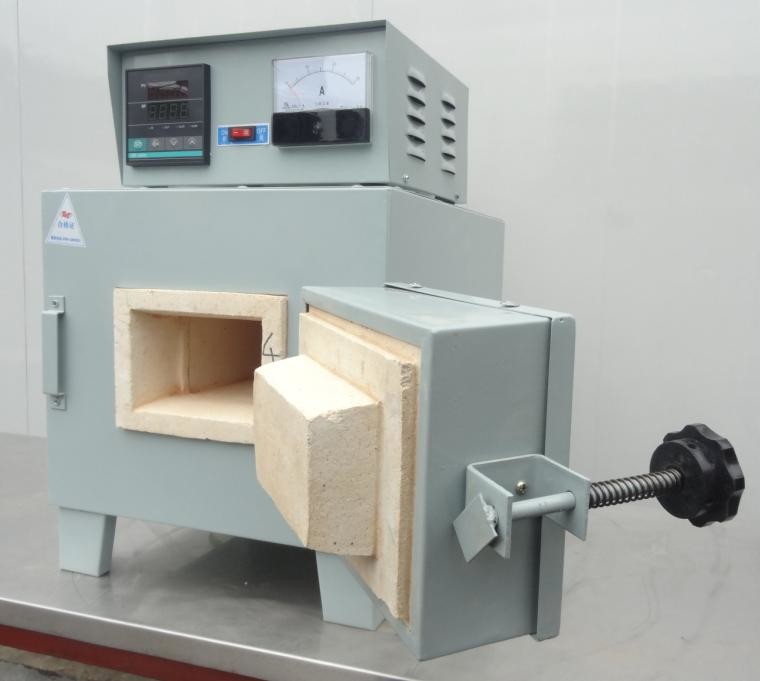

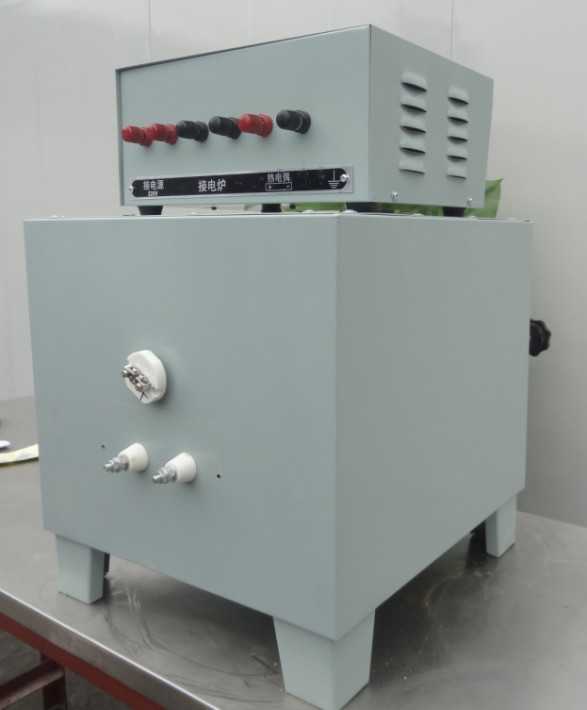

1200℃ 220V High Temperature Muffle Furnace With Excellent Stability
Product Advantages
1. Low heat conduction and heat capacity;
2. Excellent thermal stability and thermal insulation;
3. Good heat preservation effect and temperature uniformity.
High-quality materials and stable furnace temperature control system ensure the reliability of the experimental data. The kiln adopts a new type of ceramic fiber material as the furnace material and a high-quality silicon carbide rod as the heating element, the temperature controller uses the microcomputer PID control module, has the precise temperature control and the constant temperature request.
Standard Parameters
| Technical Index | HD-E805 |
| Inner dimension (W*D*H) | 200*300*120mm |
| Outer dimension (W*D*H) | 480*460*630mm |
| Temperature range | Max. 1200℃ |
| Temperature precision | +/- 5°C |
| Controller | Digital temperature controller |
| Heating element | thermal fuse |
| Thermocouple | K-thermocouple |
| Furnace materials | aluminium oxide |
| Thermal insulation material | refractory brick |
| Voltage | single-phase, 220V, 50Hz,3kw |
| Gross weight | 120kg |
