| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W828 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Timer: | 20～99.99s±0.01s |
|---|---|---|---|
| The Size Of The Pierce Disk: | 100 X100x25 Mm (LxWxH) | Rate Of Discharge: | 25 Ml/ (3.5 ± 0.25)s |
| Packaging Dimensions: | 520 X 410 X 630 Mm | Gross Weight: | 32kg |
| Power Source: | 220V, 50Hz | Use: | Non-woven |
| High Light: | HAIDA Textile Testing Equipment,32kg Textile Testing Equipment,HAIDA textile testing instruments |
||

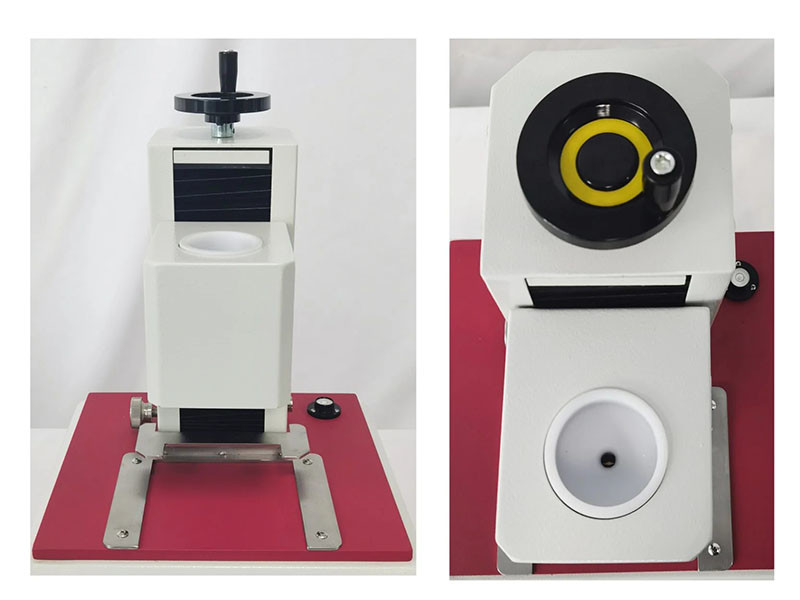

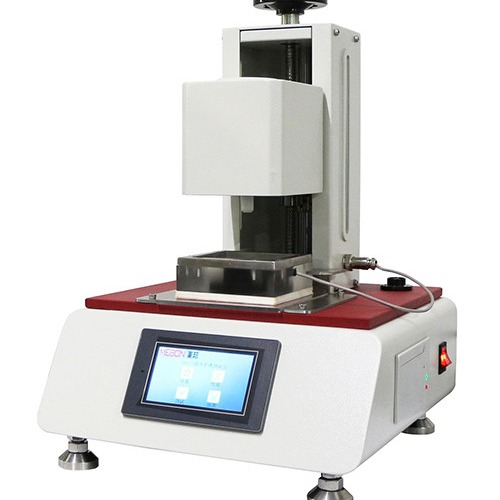

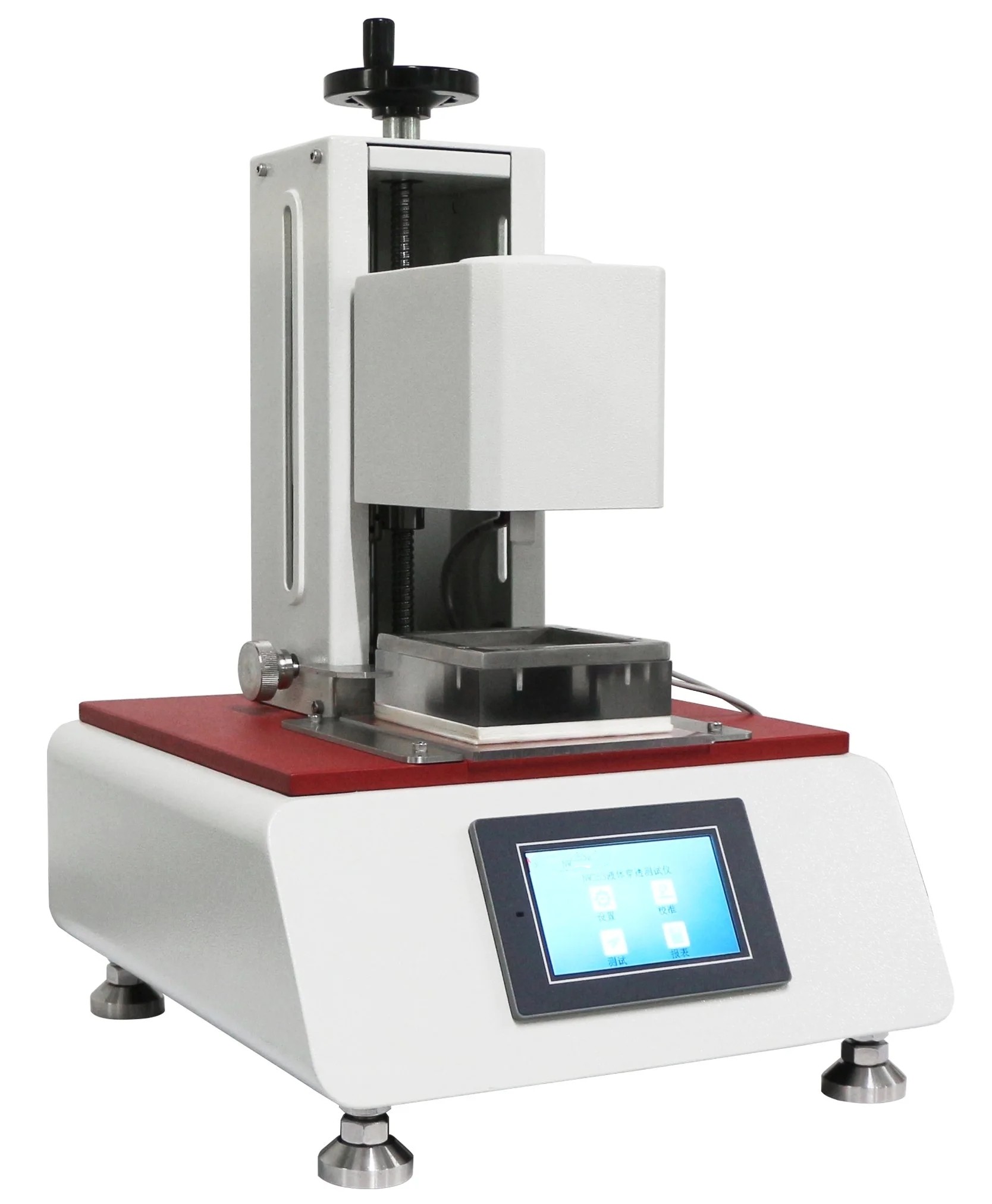

32kg Liquid Strike Though Time Tester Textile Test Machine For Non-Woven
Product Introduction
Liquid Strike Though time Tester ,The test method is designed to determine the liquid strike through time of non-woven cover stocks.
Test Standards
WSP 70.3, WSP 80.10,GB/T24218.8, GB/T24218.13, ISO9073, FZ/T60017, etc.
Key Specification
| Technical Index | HD-W828 |
| Timer | 20～99.99s±0.01s |
| Base plate |
Made of transparent acrylic sheet Appro. 125 x 125 (mm) square and 5 mm thick. |
| The size of the pierce disk | 100 x100x25 mm (LxWxH) |
| The total quality of the penetration plate | (500± 5) g |
| Rate of discharge | 25 ml/ (3.5 ± 0.25)s |
| Packaging Dimensions | 520 x 410 x 630 mm |
| Gross Weight | 32kg |
| Power source | 220V, 50Hz |
Advantages
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
