32kg Liquid Strike Though Time Tester Textile Test Machine For Non-Woven

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W828
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Timer: 20~99.99s±0.01s
The Size Of The Pierce Disk: 100 X100x25 Mm (LxWxH) Rate Of Discharge: 25 Ml/ (3.5 ± 0.25)s
Packaging Dimensions: 520 X 410 X 630 Mm Gross Weight: 32kg
Power Source: 220V, 50Hz Use: Non-woven
High Light:

HAIDA Textile Testing Equipment


32kg Textile Testing Equipment


HAIDA textile testing instruments

Product Description

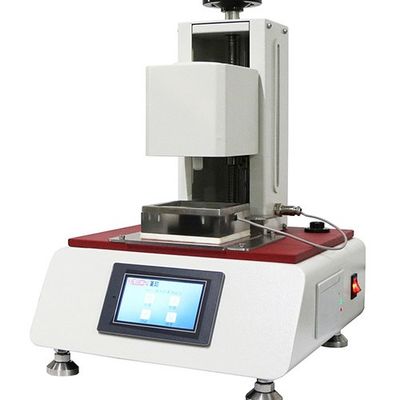

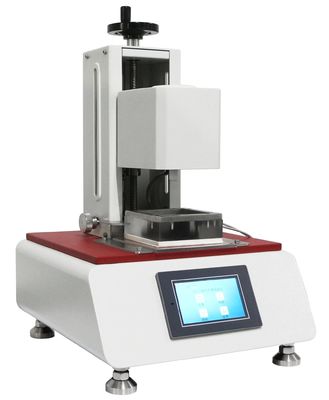

32kg Liquid Strike Though Time Tester Textile Test Machine For Non-Woven


Product Introduction


Liquid Strike Though time Tester ,The test method is designed to determine the liquid strike through time of non-woven cover stocks.


Test Standards


WSP 70.3, WSP 80.10,GB/T24218.8, GB/T24218.13, ISO9073, FZ/T60017, etc.


Key Specification


Technical Index HD-W828
Timer 20~99.99s±0.01s
Base plate

Made of transparent acrylic sheet

Appro. 125 x 125 (mm) square and 5 mm thick.

The size of the pierce disk 100 x100x25 mm (LxWxH)
The total quality of the penetration plate (500± 5) g
Rate of discharge 25 ml/ (3.5 ± 0.25)s
Packaging Dimensions 520 x 410 x 630 mm
Gross Weight 32kg
Power source 220V, 50Hz




1. High-precision peristaltic pump ensures the accuracy of the liquid penetration capacity.
2. The test is completed to automatically save the data, and can view the report calculation, analysis results, print test reports.
3. Touch screen control panel, clear image interface provides more convenient and quick operation for testers.
4. The penetrating plate is equipped with a precision positioning device to avoid damage.
5. The penetrating disc electrode is processed by special materials, and the induction is good.

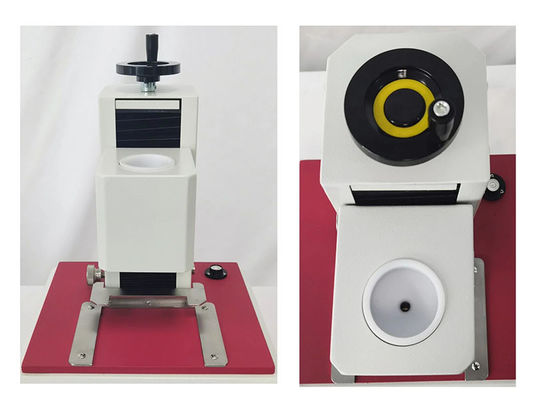

32kg Liquid Strike Though Time Tester Textile Test Machine For Non-Woven 0


How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
