| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W910 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Measurement Range: | 5 ~ 200mm |
|---|---|---|---|
| Weight: | 5.5kg | The External Dimensions: | 480*250*380mm(L*W*H) |
| Sliding Speed: | 3mm / S, 4mm / S, 5mm / S | Measurement Accuracy: | 0.1mm |
| Use: | Fabric | Sample Size: | 250*25mm, 200*25mm, 150*25mm |
| High Light: | 0.1mm fabric stiffness tester,ASTM D1388 fabric stiffness tester,0.1mm stiffness testing machine |
||

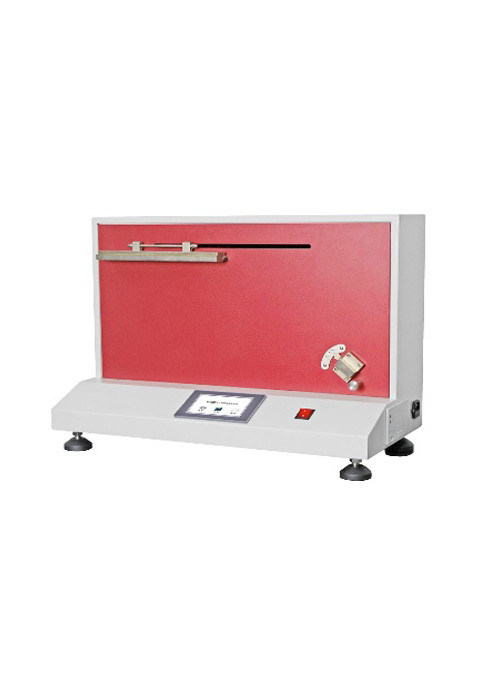

ASTM D1388 0.1mm Fabric Stiffness Tester , Stiffness Testing Machine Automatic
Introduction:
Fabric Stiffness Tester is used to test the bending resistance of fabrics such as bending elongation, flexural strength and bending stiffness.
Testing standard:
GB/T 18318.1 Determination of flexural properties of textiles - Part 1
Textiles -- Test methods for textiles -- Part 7 : Determination of flexural strength
ASTM D1388 Fabric Stiffness Test Method Specimen Briquet Length and Quality
ASTM D5732, BS 3356, DIN 53362, BSEN 22313, ERT 50-3, IS 6490, JIS 1096, JIS 1018
Main technical parameters:
| Technical Index | HD-W910 |
| Measuring angle | 41.5 °, 43 °, 45 ° three adjustable |
| sample size | 250*25mm, 200*25mm, 150*25mm |
| Sliding speed | 3mm / s, 4mm / s, 5mm / s |
| The measurement range | 5 ~ 200mm |
| Weight | 5.5kg |
| Measurement accuracy | 0.1mm |
| The external dimensions | 480*250*380mm(L*W*H) |
| weight | Appro 30kg |
| power | AC220V 50Hz 120W |
| Mendatory accessories | Reflection mirro,sample cutting template |
Feature
1. The testable angle of the sample: 41.5°, 43°, 45°, convenient for angular positioning, meeting the requirements of different test standards.
2, using infrared measurement method, agile and accurate data.
3. The transmission device is a ball screw and a linear guide to ensure smooth operation and no swing.
4. The pressure plate presses the sample by its own weight, conforms to the standard, and does not cause deformation of the sample.
5, the pressure plate with a ruler, can observe the stroke in real time.
6, with a print interface, you can directly print out the data report; can also be connected to the computer operation.
