Fabrics/Plastics/Leather/Cardboard ISO 2759 Automatic Hydraulic Bursting Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W813
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power Supply: 220V,50Hz Net Weight: 125kg
Dimensions: 550 X 450 X 700 Mm Air Requirements: 600-800kPa
Hydraulic Oil: Glycerine 85%, Distilled Water 15% Diaphragm Rubber Thick: ≤ 2 Mm
Safety Sensor: Over Scale Auto-stop Measuring Areas: 7.55cm² (Ø 31mm) And 50cm² (Ø 79.8mm)
High Light:

600mL/min Tensile Strength Testing Equipment


ASTM D 3786 Tensile Strength Testing Equipment


ASTM D 3786 hydraulic bursting strength tester

Product Description

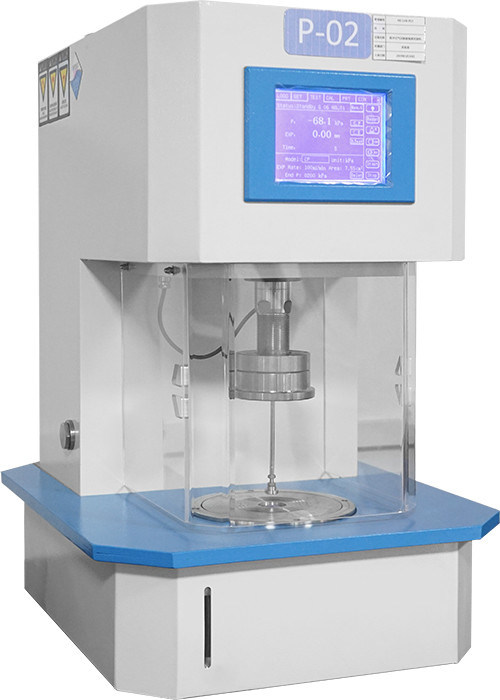

Fabrics/Plastics/Leather/Cardboard ISO 2759 Automatic Hydraulic Bursting Tester






To determine the bursting strength and distension at burst of woven and knitted fabrics as well as technical textiles,non-wovens,bonded fabrics,plastics,leather (artificial and natural) and cardboard.


Fabrics/Plastics/Leather/Cardboard ISO 2759 Automatic Hydraulic Bursting Tester 0






Technical details


Technical Index HD-W813
Pressure measurement range 2000kPa, L/C : 1kPa
Distension measurement range Up to 75 ± 0.02 mm
Measuring areas 7.55cm² (Ø 31mm) and 50cm² (Ø 79.8mm)
Unit of measurement kPa - kgf/cm² - mmHg - lb/in² - atm
Test methods Constant Rate - Constant Pressure - Constant Distension –Timing
Hydraulic system rate of flow (adjustable) 20-600mL/min
Hydraulic oil Glycerine 85%, distilled water 15%
Safety sensor Over scale auto-stop
Diaphragm rubber thick ≤ 2 mm
Data port RS232 port for printer connection and 3 pin Mini-DIN connector for PC
Dimensions 550 x 450 x 700 mm
Power supply 220V,50Hz
Air requirements 600-800kPa
Net Weight 125kg



Testing standard


ASTM D 3786,BS 4768 ,ISO 13938-1,ISO 2758,ISO 2759





Why choose us?


1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:

12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con.
