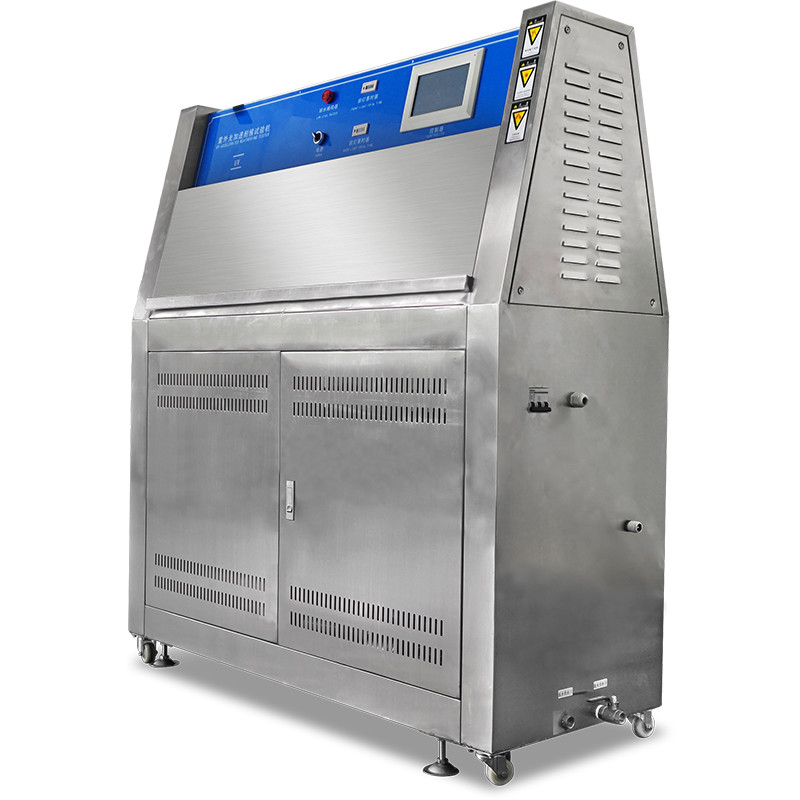

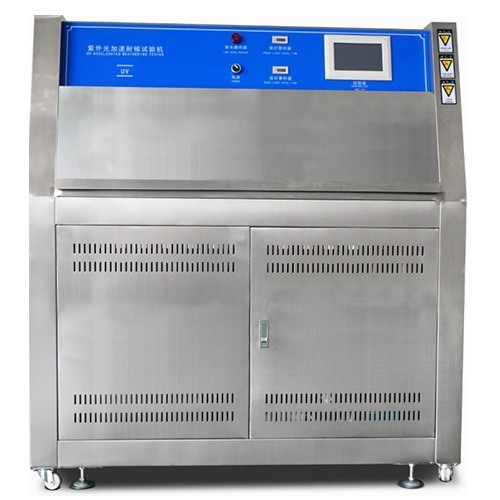

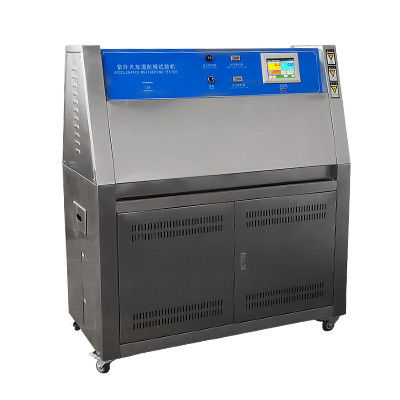

Stainless Steel Environmental Testing Chamber Textile Testing Equipment , UV Aging Test Chamber

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-E802-1
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Temperature Range: RT To 70℃
Humidity Range: ≥75%RH Lamp Power: 40W/Piece
Testing Time: 0~999H, Adjustable Material: SUS#304 Stainless Steel
High Light:

UV Test Chamber


Aging Test Chamber


UV Aging Test Chamber

Product Description

Stainless Steel Environmental Testing Chamber Textile Testing Equipment ,

UV Aging Test Chamber



Technical Index HD-E802-1
Chamber Dimension (W*D*H) 1300*500*1460mm
Chamber Material SUS#304 stainless steel
Temperature Range RT to 70℃
Temperature Fluctuation ≤±1.0℃
Temperature Uniformity 3℃
Controller Programmable controller, LCD touch screen
Control Mode Balance temperature humidity control (BTHC)
Test Cycle Setting Exposure, condensation and water spray test cycle is programmable
Water Spray Cycle Spray 18mins in every 120mins / spray 12mins in every 60mins
Distance from Sample to Lamp 55±2mm
Centre Distance between Lamps 65~70mm
Irradiance Range 0.45~0.90W/m2
UV Lamps

Atlas UV-A: 315-400nm (8pcs, 1200h lifetime)
Atlas UV-B: 280-315nm (8pcs, 1200h lifetime)

Lamp Power 40W/Piece
Specimen Size 75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm
Protection System

Overload short circuit protection

Over temperature protection

Water lacking protection

Earth leakage protection
Auto shut off protection

ISO 4892-3, ASTM G154 and etc.


Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.

To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.

Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.

UV aging test chamber

Haida International Equipment Co,Ltd is a National "High-tech Enterprise"(certified in 2016),integrating R&D,manufacturing and brand marketing.Our textile testing instruments meets with the requirements of ISO, ASTM, AATCC, BS, GB, DIN, EN, JIS. We are committed to providing high quality testing instruments.We always adhered to the strict and professional concept and strictly control the quality of products, and provide our customers with high-quality testing instruments,first-class service and competitive prices.
