ISO 4892-3 Textile Testing Equipment UV Aging Test Chamber Water Usage 8L/Day

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-E802-1
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Lamp Power: 40W/Piece
Irradiance Range: 0.45~0.90W/m2 Testing Time: 0~999H, Adjustable
Humidity Range: ≥75%RH Temperature Range: RT To 70℃
Temperature Fluctuation: ≤±1.0℃ Temperature Uniformity: 3℃
High Light:

UV Aging Test Chamber


UV Test Chamber


Aging Test Chamber

Product Description

ISO 4892-3 Textile Testing Equipment UV Aging Test Chamber Water Usage 8L/Day




UV Aging Chamber Applications


Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.

To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.

Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.



Test Standard


ISO 4892-3, ASTM G154 and etc.



Technical Parameters


Technical Index HD-E802-1
Chamber Dimension (W*D*H) 1300*500*1460mm
Chamber Material SUS#304 stainless steel
Humidity Range ≥75%RH

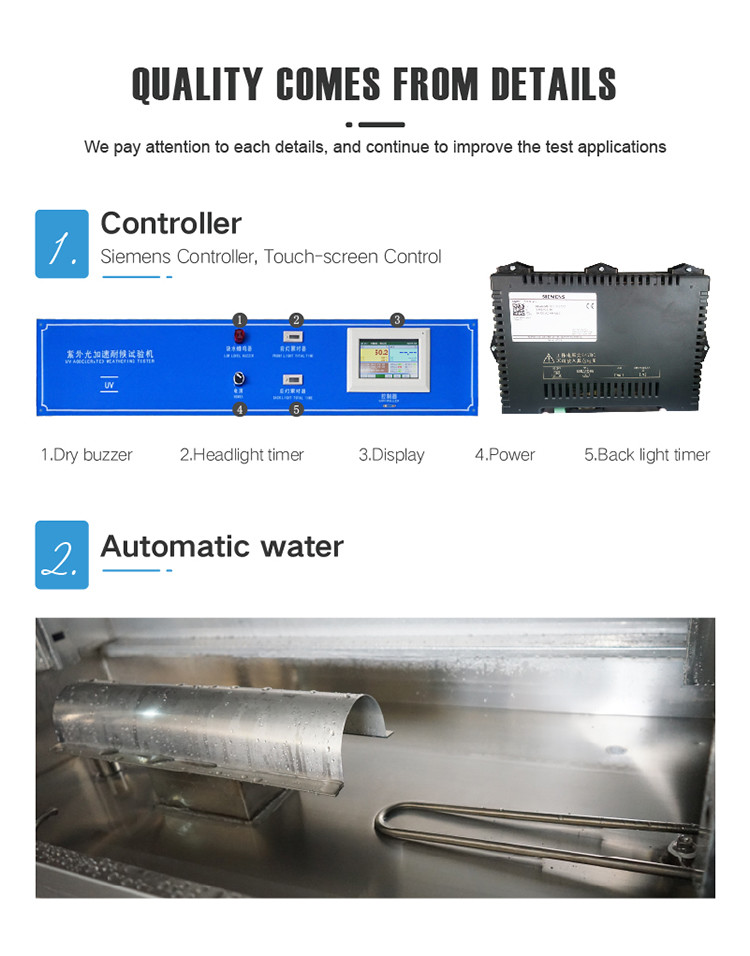

Controller Programmable controller, LCD touch screen
Control Mode Balance temperature humidity control (BTHC)
Test Cycle Setting Exposure, condensation and water spray test cycle is programmable
Water Spray Cycle Spray 18mins in every 120mins / spray 12mins in every 60mins
Distance from Sample to Lamp 55±2mm
Centre Distance between Lamps 65~70mm
Irradiance Range 0.45~0.90W/m2

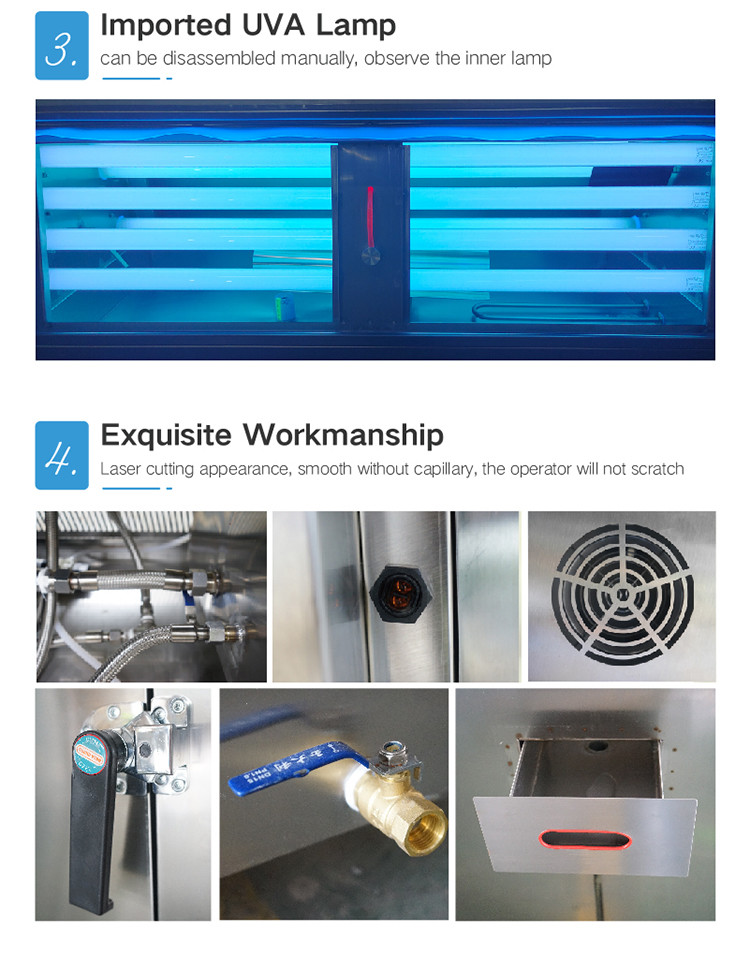

UV Lamps

Atlas UV-A: 315-400nm (8pcs, 1200h lifetime)

Atlas UV-B: 280-315nm (8pcs, 1200h lifetime)

Specimen Size 75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm
Protection System

Overload short circuit protection

Over temperature protection

Water lacking protection

Earth leakage protection

Auto shut off protection




UV Aging Test Chamber




How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
