Pilling Test Machine
Created with Pixso.

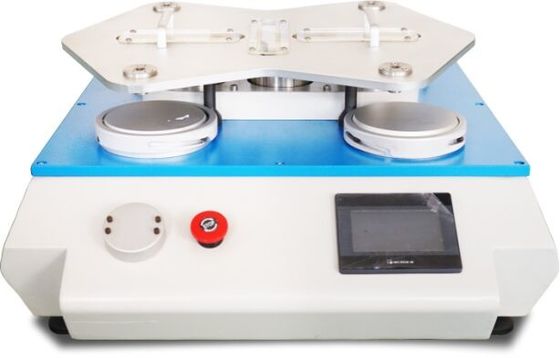

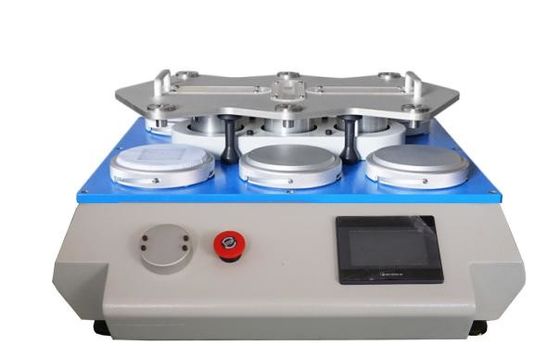

LCD Display Martindale Abrasion Tester ,Pilling Test Equipment 6 Working Station

LCD Display Martindale Abrasion Tester ,Pilling Test Equipment 6 Working Station

Brand Name: HAIDA
Model Number: HD-P306
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
CE,ISO
Power:
Electronic
Interface:
LCD Display
Pace Speed Of The Holder:
50-2r/min
Sample Loading Pressure Hammer:
2385±10g
Diameter Of Abrasion Fabric:
140mm
Diameter Of Specimen:
38mm
Dimension:
750x960x520mm
Product Name:
Martindale Abrasion Tester
Packaging Details:
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Supply Ability:
30 Sets per Month Haida
Highlight:

AC 220V martindale abrasion tester

,

martindale abrasion tester

,

AC 220V martindale test equipment

Product Description

LCD Display AC 220V Martindale Abrasion Tester , Pilling Test Equipment 6 Working Station




Introduction

Martindale abrasion tester mainly used for testing pilling and abrasion resistance of textile and similar fabrics. According to the standard, the test can be divided into dry test and wet test. The samples with Lissajous as the guide were tested, and the difference between the samples and the original samples was observed in the prescribed time to determine the scrub resistance grade.

LCD Display Martindale Abrasion Tester ,Pilling Test Equipment 6 Working Station 0




Product parameters



Technical IndexHD-P306-4HD-P306-6HD-P306-8
ConsumablesBaize 4,Testing Cotton 4Baize 6,Testing Cotton 6Baize 8 ,Testing Cotton 8
InterfaceLCD display
Count displayProjected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times
Maximum stroke24 ± 0.5mm, 60.5 ± 0.5mm
Loading :a. Holder:200±1g
b. Dress material counter weight: 395±2g
c. Furnishings/Leather material counter weight: 594±2g
d. Stainless steel butterfly slice: 260±1g
Abrasion chunk effective rub diameterA model: 200g(1.96N,9KPa) , abrasion head￠ 28.8 -0.084mm
Pace speed of the holder50-2r/min
Sample loading pressure hammer2385±10g
Diameter of abrasion fabric140mm
Diameter of Specimen38mm
PowerAC 220V/50Hz
Dimension600x650x320mm750x960x520mm/



































Product Advantages

1.Adopt with LCD touch screen, clear and easy to operate;
2. With pill and abrasion testing progress, can meet various international standards;
3. Use reduce and increase counting testing method for easy operation;
4. With imported PLC, reliable and suitable for long time test


Why choose us?

1.Design & Production : Solution Consultation for each order
   Recommend the most cost -performance machine
   Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
   Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
   1 year warranty with lifetime technology support
4.After-Sale Service
   React within 2 Hours
   Video inspection & on-site service combined
