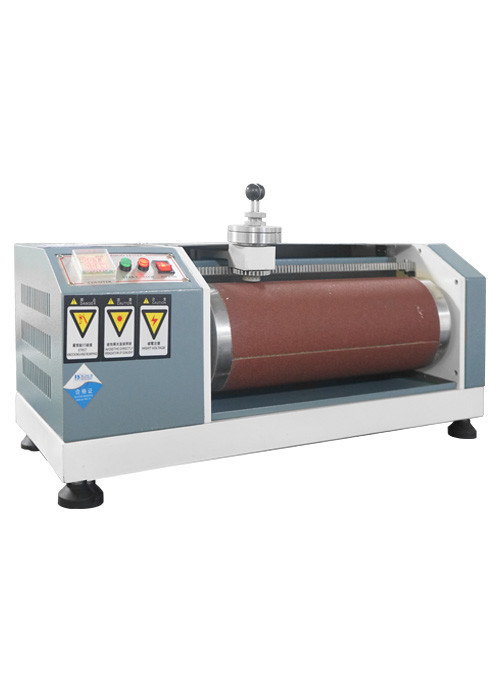

2.5N,5N DIN Abrasion Tester To Test Abrasion Resistance Of Rubber And Leather

2.5N,5N DIN Abrasion Tester To Test Abrasion Resistance Of Rubber And Leather

Brand Name: HAIDA
Model Number: HD-P307
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
CE,ISO
Power:
Electronic
Net Weight:
55KG
Machine Size:
(L×W×H)70×30×30cm
Abrasion Speed:
0.32m/sec
Travel Reservations:
40m/20m
Weight Load:
2.5N,5N
Fixture Load:
2.5N
Specimens Size:
16mm, 6-15mm (D)
Packaging Details:
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Supply Ability:
30 Sets per Month Haida
Highlight:

Rubber Abrasion Test

,

Leather Abrasion Test

,

DIN Abrasion Tester

Product Description

2.5N,5N DIN Abrasion Tester To Test Abrasion Resistance Of Rubber And Leather









Product Information



DIN abrasive tester is to test the surface friction of a particular sandpaper, and then to evaluate the surface condition, weight, volume and thickness of the material after a certain period of friction, from this standard to evaluate the abrasive properties of materials.



Suitable for leather performance testing in footwear, clothing, bags and handbags, research laboratories, commodity inspection, arbitration and technical supervision departments. Technical parameter.









Test Standard



DIN-53516, ISO-4649, GB/T9867, ASTM D5963, ISO 20344 8.3



STANDARD SPECIFICATIONS



Technical Index HD-P307
Specimens size 16mm, 6-15mm (D)
Fixture load 2.5N
Weight load 2.5N,5N
Fixture lateral displacement 4.2mm/wheel each lap
Wheel diameter 150mm
Wheel length 460mm
Wheel rotate speed 40rpm
Travel reservations 40m/20m
Abrasion speed 0.32m/sec
Dip angle 3°the angle of the specimen
back shaft with vertical roller face
Machine Size

(L×W×H)70*30*30

Net Weight 55KG









FAQ



How to install and use the product?



The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.



What is the order process?


Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.


Do you accept customization service?


Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
