Elmendorf Tearing Tester , Fabric Strength Testing Machine Electronic Tensile Testing Machine

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W812
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Net Weight: 58KG
Dimensions: 490 X 430 X 680 Mm Template Size: As Per ASTM Standard
Display: LCD Display Backlight Slit Size: 20 ± 0.2 Mm
Tearing Distance: 43 ± 0.15m Distance Between Clamps: 7.0 ± 0.25 Mm
High Light:

DIN 53862 elmendorf tearing tester


16N elmendorf tearing tester


16N fabric strength testing machine

Product Description

Elmendorf Tearing Tester , Fabric Strength Testing Machine Electronic Tensile Testing Machine






Elmendorf Tearing Tester to determine the ballistic tearing strength of woven fabrics, plastic films, paper, or other similar materials.





Textile: ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17

Plastics: ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141

Nonwovens: ASTM D5734, WSP 100.1

Paper: APPITA P 400,ASTM D 689,BS 4468,CSA D9,DIN 53128,EN 21974,ISO 1974



Standard Features


Technical Index HD-W812
Measuring pendulum range


32N (By adding Augmenting weight)

64N (By adding Augmenting weight)

Unit of measurement CN, N , gf , lbf
Distance between Clamps 7.0 ± 0.25 mm
Tearing Distance 43 ± 0.15m
Slit Size 20 ± 0.2 mm
Tollerance range 20-80 % of each full scale, settable range or full scale
Angular resolution high resolution digital optical encoder
Display LCD display backlight
Data port RS232 port for printer connection and 3 pin Mini-DIN connector for PC.
Statistics Force min. max. mean, CV%, St. Deviation, Range%
Template Size As per ASTM standard
Dimensions 490 x 430 x 680 mm
Power supply 220V, 50Hz
Net Weight 58KG

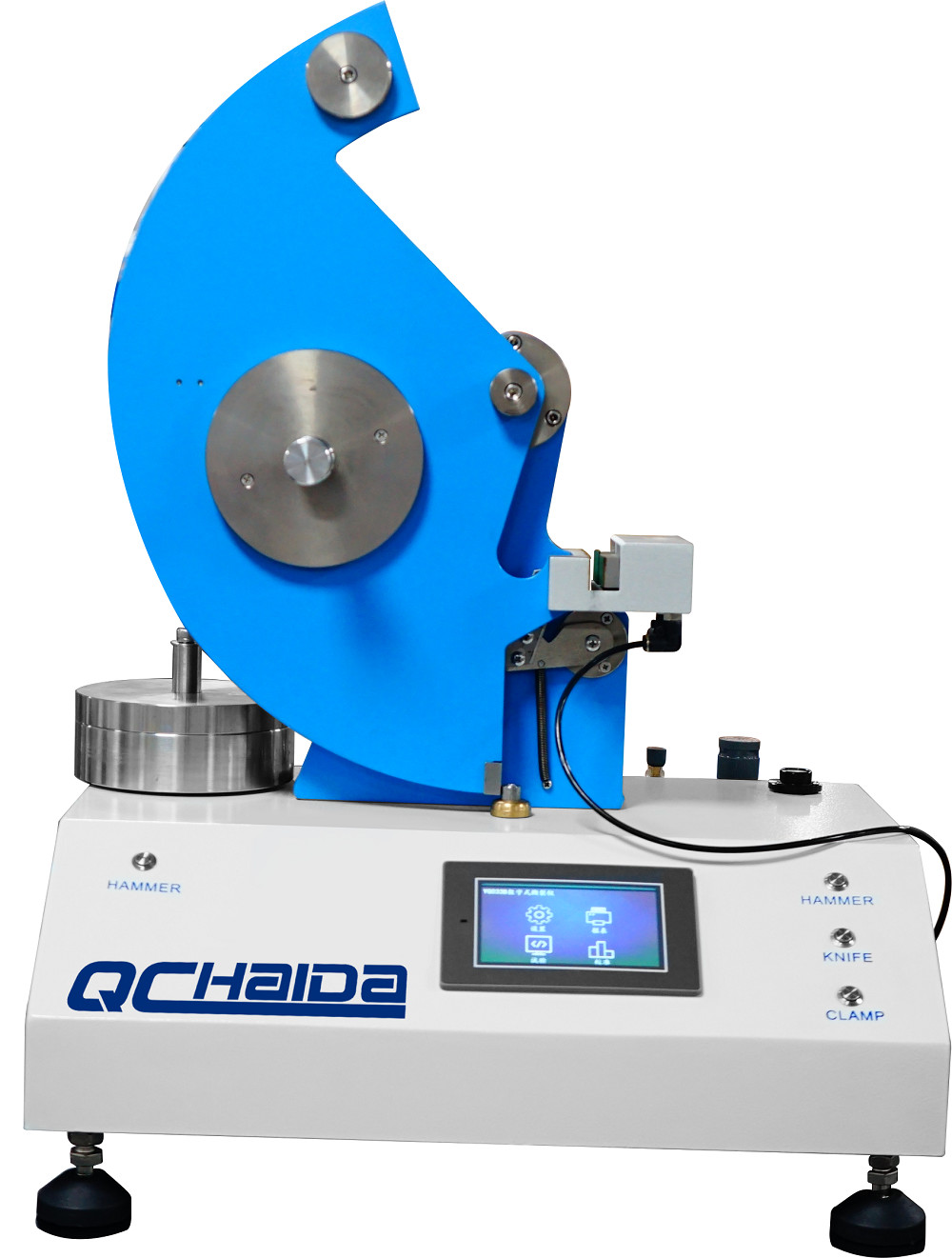

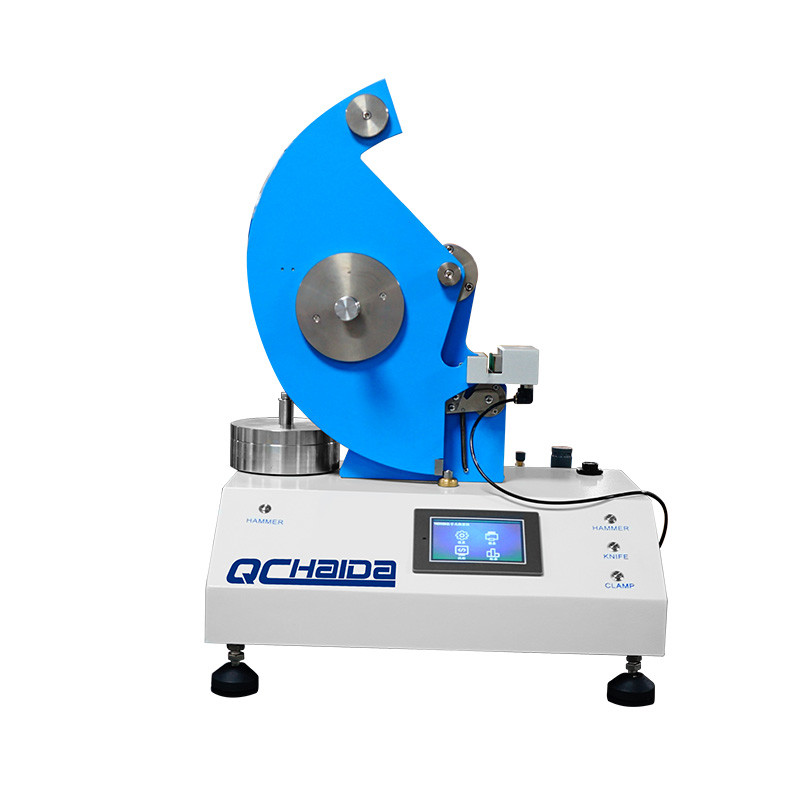

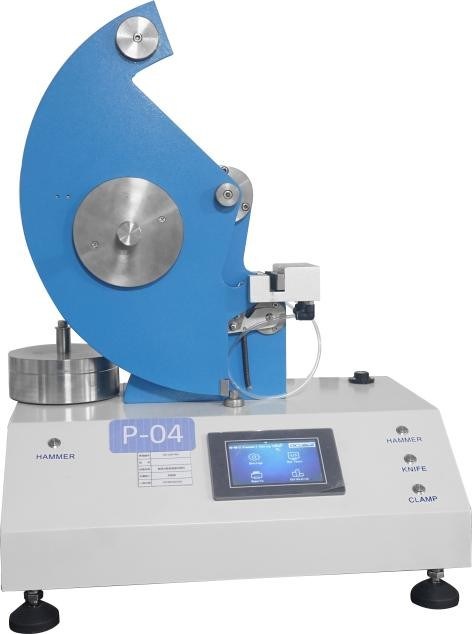

Elmendorf tearing tester



How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
