| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W369 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Weight: | 15 Kg |
|---|---|---|---|
| Counter(Re-settable): | 0 – 999999 | Speed Range: | 50～80 Times/min |
| Dimensions: | 250 X 350 X 480 Mm | ||
| High Light: | 80 Times/Min color fastness testing machine,HAIDA color fastness testing machine,80 Times/Min color fastness tester |
||

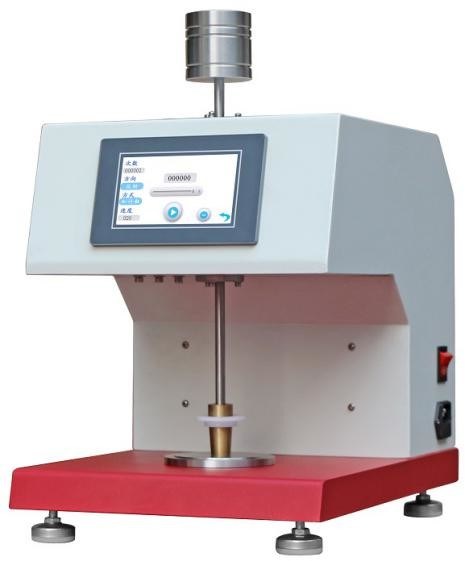

GB/T 29865-2013 80 Times/Min Color Fastness Testing Machine For Fabric Dyeing
USAGE
To determine the amount of color transferred from the surface of colored textile materials to other surfaces by rubbing, especially to prints where the singling out of areas smaller than possible to test with the standard AATCC Crockmeter.
APPLICATION
Rotary Crock meter is used for testing the transference of color from the surface of one material(particularly for printer fabrics) to another by either wet or dry rubbing.Specimens are rubbed with dry, standard cotton cloth (Crocking cloth) and again,if applicable,with wet cloth.The staining of the crocking cloths is assessed with the Grey Scale.
TECHNICAL PARAMETERS
| Technical Index | HD-W369 |
| Diameter of the Rubbing Finger | 16 |
| Weight | 1134g |
| Counter(Re-settable) | 0 – 999999,(Least Count:1) |
| Speed range | 50～80 times/min |
| Rotational Mode | 1.125 turns clockwise then anti-clockwise |
| Dimensions | 250 x 350 x 480 mm |
| Power supply | 220V,50Hz,100W |
| Weight | 15 Kg |
TESTING STANDARDS
GB/T 29865-2013 ,AATCC 116,ISO 105 X16
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
