| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W805 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Dimensions: | 800 X 500 X 1000 Mm |
|---|---|---|---|
| Weight: | 100kg | Control Mode: | LCD Touch Panel |
| Temperature Regulation: | ± 2.0°C (as Per ISO) | Speed Of Rotation: | 40 ± 2 Rpm |
| Distance From Shafts: | 45 Mm | Use: | Cotton, Wool, Silk |
| High Light: | 5KW Color Fastness Testing Equipment,AATCC Color Fastness Testing Equipment,AATCC washing fastness tester |
||

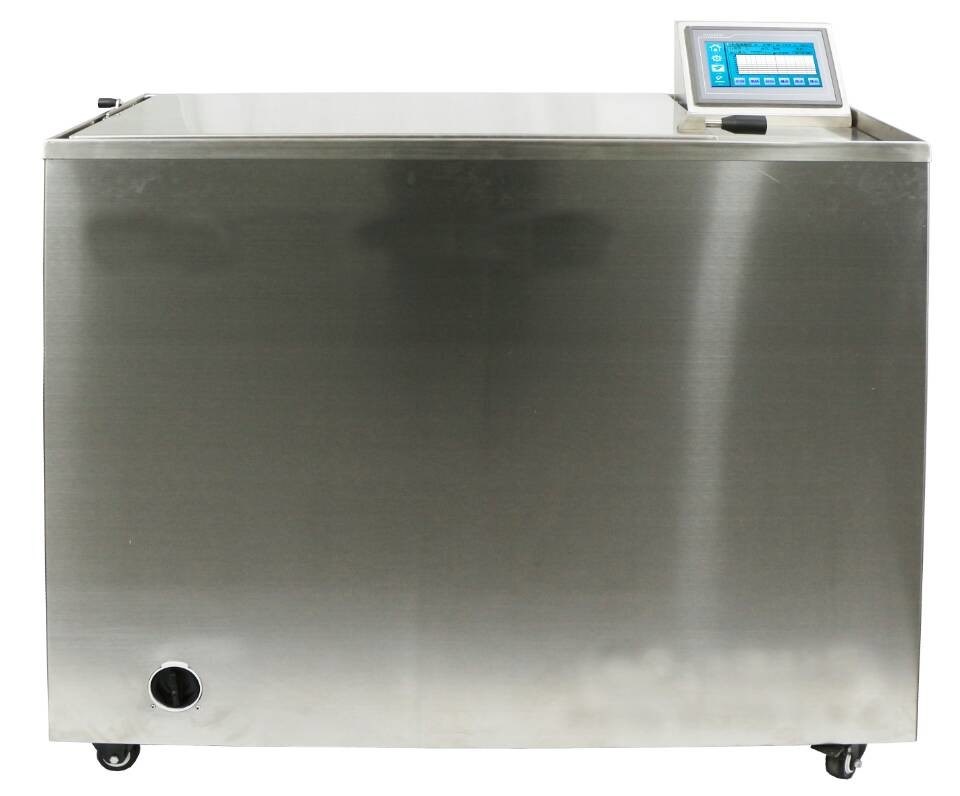

LCD Touch Panel 5KW Color Fastness Testing Equipment AATCC AC380V
Technical details
| Technical Index | Type 1 | Type 2 |
| Number of Beakers(Test Vessels) | Total 12Nos.(6 Nos.(For ISO) and 6Nos. For AATCC) | Total 18Nos. (12 Nos.(For ISO) and 6Nos. For AATCC) |
| Standard seal for beakers | 12 no’s special neoprene gaskets | |
| Volume of each beaker | as per ISO:550 ml; as per AATCC:1200ml | |
| Distance from shafts | 45 mm | |
| Speed of rotation | 40 ± 2 rpm | |
| Temperature Controller | TI-LM35 type (up to 99.9°C) L/C – 0.5°C | |
| Temperature Regulation | ± 2.0°C (as per ISO) | |
| Control mode | LCD touch panel | |
| Power supply | 220V, 50Hz | |
| Weight | 100 Kg | 120kg |
| Dimensions | 800 x 500 x 1000 mm | 800 x580 x 1000 mm |
| Power | AC380V,50Hz,5KW | |
Application
Colour Fastness to Washing Tester is applied to determine the dye washing color fastness, resistant to washing, resistant to dry cleaning and resistant to shrink of cotton, wool, silk jute and chemical fiber textiles.
Testing standard
ISO 105-C06,ISO 105-C08,ISO 105-C09,ISO 105-C10,ISO 105-D01,ISO 105-E03
AATCC 61,190 AATCC 86,132
M&S C04,M&S C05, M&S C10A, M&S C12A, M&S C37
BS 1006,JIS L0844
