4 Test Chambers Random Tumble Pilling Tester 14kPa - 21kPa Textile Measuring

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W128-4
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Net Weight: 80kg
Dimensions: 700 X 400 X 550 Mm Compressed Air Injection: 14kPa - 21kPa (2 - 3 Psi)
Timer: Up To 99 Min And 59 S Length Of Impeller: 121mm
High Light:

14kPa Pilling Test Machine

,

4 Chambers Pilling Test Machine

,

14kPa Random Tumble Pilling Tester


Product Description

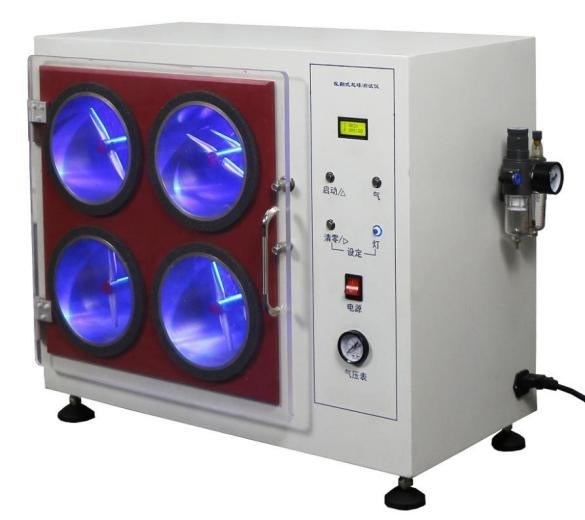

4 Test Chambers Random Tumble Pilling Tester 14kPa - 21kPa Textile Measuring







Introduction



Random tumble pilling tester determinate the pilling and fuzzing characteristics of fabrics. Stainless steel impellers rotate and roll over the individually lit aluminum chamber to test fabric against the Cork liner in a pre-determined time-controlled timer and sound alarm. The Compressed air is also injected into the chamber that aids the roll. There are four labs. Lab standard compression, air supply.




Test standards



ASTM D3512 Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Random Tumble Pilling Tester

ISO 12945-3 Textiles- Determination of the fabric propensity to surface pilling, fuzzing or matting

Part 3: Random tumble pilling method

JIS L 1076 Testing methods for pilling of woven fabrics and knitted fabrics

DIN 53867 Testing of textile fabrics; determination of pilling with the Random-Tumble-Pilling-Tester







Technical parameter:



Technical Index HD-W128-2 HD-W128-4
Number of Chambers 2 Nos. 4 Nos.
Size of chamber 146mm (inside diameter) x 152mm (length)
Length of impeller 121mm
Number of samples 12 (3 in each compartment)
Impeller rotation speed 1200 ± 10 rpm
Timer up to 99 min and 59 s
Compressed air injection 14kPa - 21kPa (2 - 3 Psi)
Cork sheet 1.5mm (thickness) x 148mm (width) x 452mm (length)
Chloroprene sheet (optional) 3mm (thickness) x 452mm (length), 47±3° (in hardness)
Dimensions 550 x 380 x 550 mm 700 x 400 x 550 mm
Power supply 220V, 50Hz or 110V, 60Hz,90W
Net Weight 65kg 80kg
