Pilling Test Machine
Created with Pixso.

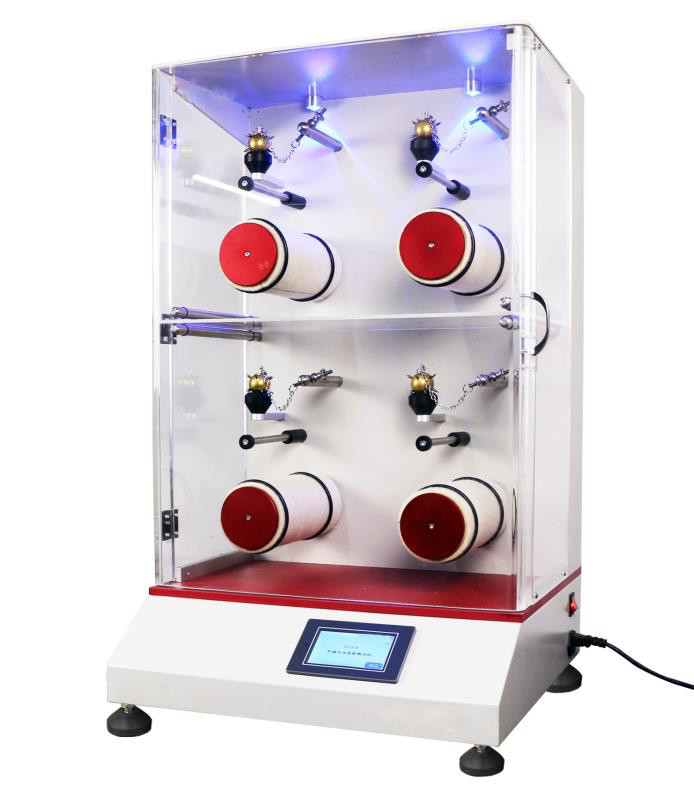

Tungsten Carbide Needle 4 Positions ICI Mace Snag Tester For Textile

Tungsten Carbide Needle 4 Positions ICI Mace Snag Tester For Textile

Tungsten Carbide Needle 4 Positions ICI Mace Snag Tester For Textile

Brand Name: HAIDA
Model Number: HD-W955
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
CE,ISO
Power:
Electronic
Net Weight:
60Kg
Dimensions:
970 X 480 X400 Mm
Needle:
Tungsten Carbide Steel
Digital Counter:
0–99999,LED
Size Of Test Specimen:
200x330mm
Felt Thickness:
3～3.2mm; Width 165mm
Mace Weight:
160±10g
Packaging Details:
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Supply Ability:
30 Sets per Month Haida
Highlight:

ICI Mace Snag Tester

,

Mace Snag Tester

,

4 Positions Mace Snag Tester

Product Description

Tungsten Carbide Needle 4 Positions ICI Mace Snag Tester For Textile







INTRODUCTION



ICI Mace Snag Tester applies to rapidly determine the snagging resistance of heavyweight fabrics such as apparel, upholstery, and automotive interiors fabrics etc.







TEST STANDARD



ASTM D3939,GB / T 11047







TECHNICAL PARAMETER



Technical Index HD-W955
No. of Cylinder 4 Nos.
Mace Diameter Ø 31.8mm, Weight 160g (Including needles)
Speed of Rotation of Cylinder 60 R.P.M. (± 2 rpm.) (As Per Standards)
Mace weight 160±10g
The exposed length of the pin nail 10mm; the tip radius R0.13mm
Felt thickness 3～3.2mm; width 165mm
Working width of guide rod 125mm
The distance between the hammer and the guide rod 45mm
Size of Test Specimen 200x330mm (As Per Standards)
Digital Counter (Preset Type) 0–99999,LED
Needle tungsten carbide steel
Dimensions 970 x 480 x400 mm
Power supply 220V,50Hz or 110V,60Hz
Net Weight 60 Kg



FEATURES



The number of rotation cycles can be preset. Automatically stops when the preset rotation period is reached. In order to ensure the accuracy of detection and prolong the service life, the nail hammer is made of platinum steel. Adjustable chain length.
