4.2mm/Wheel Each Lap DIN Abrasion Tester Textile Test Machine For Rubber 2.5N,5N

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P307
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Fixture Load: 2.5N
Weight Load: 2.5N,5N Wheel Diameter: 150mm
Wheel Length: 460mm Travel Reservations: 40m/20m
Abrasion Speed: 0.32m/sec Net Weight: 55KG
High Light:

4.2mm/Wheel Pilling Test Machine


2.5N Pilling Test Machine


ASTM D5963 Textile Test Machine

Product Description

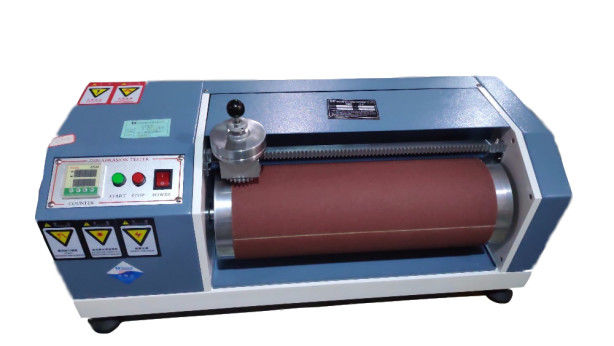

4.2mm/Wheel Each Lap DIN Abrasion Tester Textile Test Machine For Rubber 2.5N,5N




Product introduction


This tester is used to measure the wear resistance of rubber (vulcanized thermosetting rubber and Thermoplastic elastomer) to abrasivewear in practical use. Wear resistance is measured by moving a test block across the surface of an abrasive plate mounted on a rotating drum and expressed as a percentage of the volume loss MM3 or wear resistance index. The smaller the volume loss, the better the wear resistance; the smaller the value, the worse the wear resistance.




Key specification


Technical Index HD-P307
Specimens size 16mm, 6-15mm (D)
Fixture load 2.5N
Weight load 2.5N,5N
Fixture lateral displacement 4.2mm/wheel each lap
Wheel diameter 150mm
Wheel length 460mm
Wheel rotate speed 40rpm
Travel reservations 40m/20m
Abrasion speed 0.32m/sec
Dip angle 3°the angle of the specimen
back shaft with vertical roller face
Machine Size (L×W×H)70*30*30
Net Weight 55KG





















Standard features


DIN-53516, ISO-4649, GB/T9867, ASTM D5963, ISO 20344 8.3






Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.


Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
