LCD Display Martindale Abrasion Tester 4 Working Station Textiles Testing Machine

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P306
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Interface: LCD Display
Maximum Stroke: 24 ± 0.5mm, 60.5 ± 0.5mm Pace Speed Of The Holder: 50-2r/min
Diameter Of Abrasion Fabric: 140mm Diameter Of Specimen: 38mm
Product Name: Martindale Abrasion Tester Use: Textiles
High Light:

LCD Display Abrasion Testing Equipment

,

4 Working Station Abrasion Testing Equipment

,

martindale abrasion and pilling tester


Product Description

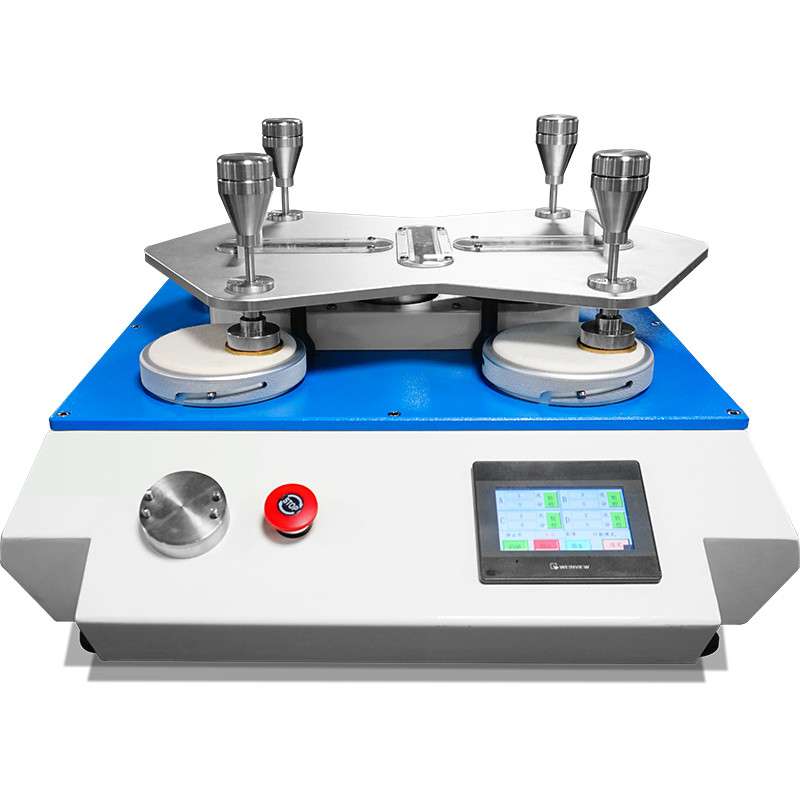

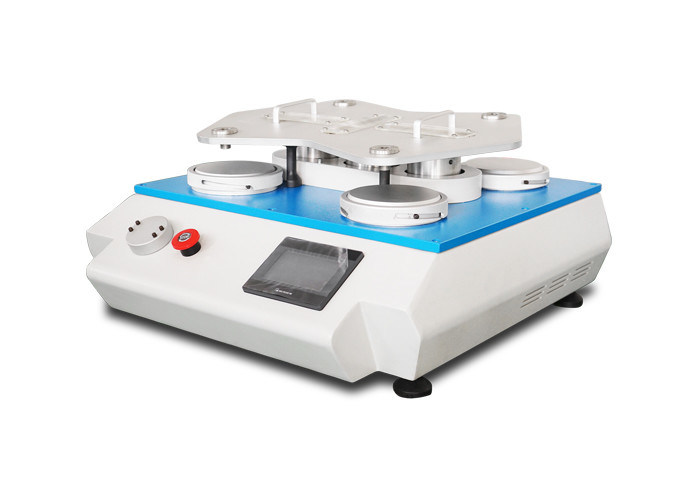

LCD Display Martindale Abrasion Tester 4 Working Station Textiles Testing Machine









Martindale Abrasion Tester Product Introduction​



Textile fabrics having no particular directions cannot be tested its strength in tensile testers;a multidirectional force generated by hydrostatic pressure is applied on fabric to check the strength of that fabric, this phenomenon is called bursting strength testing.Automatic Hydraulic Diaphram Bursting Tester is specially designed to perform the bursting strength testing of kitted fabrics, with pneumatic control.It can also be used for leather, paper & card Boards etc.Smith Barney Inc. are now able to offer a technically advanced machine that is easy to use and inexpensive to own.



Martindale abration Tester



Product Features



Adopt with LCD touch screen, clear and easy to operate

With pill and abrasion testing progress, can meet various international standards

Use reduce and increase counting testing method for easy operation

With imported PLC, reliable and suitable for long time test.







Standard Features



Technical Index HD-P306-4 HD-P306-6 HD-P306-8
Consumables Baize 4,Testing Cotton 4 Baize 6,Testing Cotton 6 Baize 8 ,Testing Cotton 8
Interface LCD display
Count display Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times
Maximum stroke 24 ± 0.5mm, 60.5 ± 0.5mm
Loading : a. Holder:200±1g
b. Dress material counter weight: 395±2g
c. Furnishings/Leather material counter weight: 594±2g
d. Stainless steel butterfly slice: 260±1g
Abrasion chunk effective rub diameter A model: 200g(1.96N,9KPa) , abrasion head¢ 28.8 -0.084mm
Pace speed of the holder 50-2r/min
Sample loading pressure hammer 2385±10g
Diameter of abrasion fabric 140mm
Diameter of Specimen 38mm
Power AC 220V/50Hz
Dimension 600x650x320mm 750x960x520mm /



































































Test Standard



ASTM D4970, ISO12945-2 and other pilling degree test;

ASTM D4966, ISO12947 and other fabric abrasion tests.







FAQ



Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.



Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.



Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.



Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
