2 Or 4 Boxes ICI Standard Digital Counter Pilling And Snagging Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W811
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Size Of Wooden Boxes: 235 X 235 X 235 Mm
Thickness Of Cork Lining: 3.2 Mm Digital Counter: 0–99999
Dimension: 900 X 500 X 500 Mm Net Weight: 45kg
High Light:

Pilling Test Machine


Pilling And Snagging Tester


ICI Pilling And Snagging Tester

Product Description

2 or 4 Boxes ICI standard Digital Counter Pilling and Snagging Tester





ICI Pilling Tester Introduction


ICI Pilling and Snagging Box to rapidly replicate pilling or snagging on fabrics in a fraction of the time due to normal wear.

ICI Pilling and Snagging Box use a universal drive system with 2 or 4 position, electronic digital counter, and sample mounting fixture. The machine Accepts ICI Pilling boxes and drums / Snagging boxes and drums. It to determine the pilling and snagging resistance of textile fabrics.

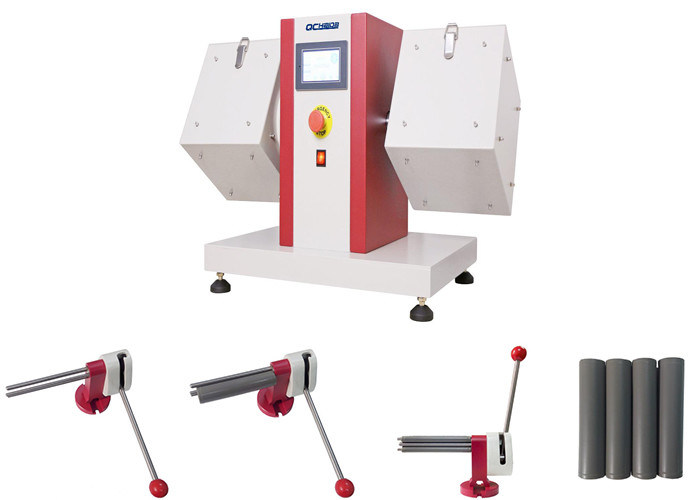

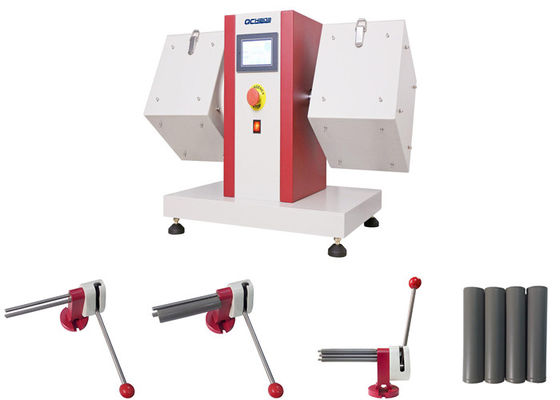

2 Or 4 Boxes ICI Standard Digital Counter Pilling And Snagging Tester 0





Standards of ICI Pilling and Snagging Tester


ISO 12945-1,BS 5811,IWSTM 152,NEXT 19,JIS L1076,M&S P18,M&S P21A,BS 8479





Technical parameter


Technical Index HD-W811-2 HD-W811-4
No. of Boxes 2 Nos. 4 Nos.
Size of Wooden Boxes inside (Before Cork Lining) 235 x 235 x 235 mm (As Per Standards)
Thickness of Cork Lining 3.2 mm (As Per Standards)
Speed of Rotation of Boxes 60 R.P.M. (± 2 rpm.) (As Per Standards)
Size of Test Specimen Length 140 mm + 1 mm (As Per Standards)
Diameter 31.5 mm + 1 mm
Wall Thickness 3.2 mm + 0.5 mm
Weight 52.25 gms. + 1 gms
Digital Counter (Preset Type) 0–99999
Dimension 900 x 500 x 500 mm 900 x 500 x 800 mm
Power supply 220V, 50Hz or 110V, 60Hz,120W
Net Weight 45kg 70 Kg
