ASTM Random Tumble Pilling Tester Abrasion Testing Machine For Fabrics

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W128-4
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Length Of Impeller: 121mm
Number Of Samples: 12 (3 In Each Compartment) Impeller Rotation Speed: 1200 ± 10 Rpm
Timer: Up To 99 Min And 59 S Dimensions: 700 X 400 X 550 Mm
Net Weight: 80Kg Use: Textile Fabrics
High Light:

ASTM Random Tumble Pilling Tester


1200rpm Random Tumble Pilling Tester


ASTM Abrasion Testing Machine

Product Description

ASTM Random Tumble Pilling Tester , Abrasion Testing Machine For Fabrics




Product introduction

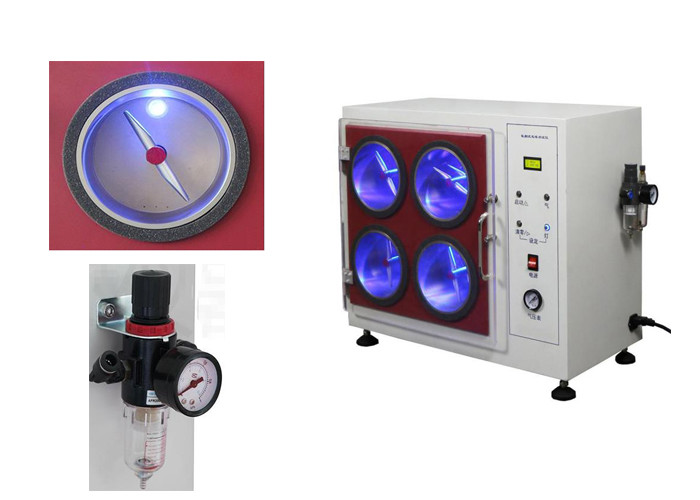

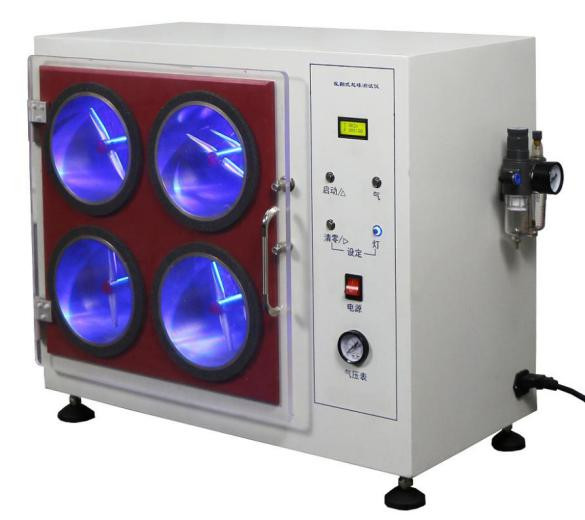

Random tumble pilling tester uses stainless steel impellers to rotate in individually lit aluminum chambers, constantly rolling to test fabric-to-cork liners, at predetermined times controlled by timers and sound alarms.The Compressed air is also injected into the chamber to aid the roll. 2 or 4 pilling labs. Requires a standard supply of Compressed air.
random tumbling tester
Technical parameter:


Technical Index HD-W128-2 HD-W128-4
Number of Chambers 2 Nos. 4 Nos.
Size of chamber 146mm (inside diameter) x 152mm (length)
Length of impeller 121mm
Number of samples 12 (3 in each compartment)
Impeller rotation speed 1200 ± 10 rpm
Timer up to 99 min and 59 s
Compressed air injection 14kPa - 21kPa (2 - 3 Psi)
Cork sheet 1.5mm (thickness) x 148mm (width) x 452mm (length)
Chloroprene sheet (optional) 3mm (thickness) x 452mm (length), 47±3° (in hardness)
Dimensions 550 x 380 x 550 mm 700 x 400 x 550 mm
Power supply 220V, 50Hz or 110V, 60Hz,90W
Net Weight 65kg 80kg
























Test standards


ASTM D3512 Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Random Tumble Pilling Tester

ISO 12945-3 Textiles- Determination of the fabric propensity to surface pilling, fuzzing or matting

Part 3: Random tumble pilling method

JIS L 1076 Testing methods for pilling of woven fabrics and knitted fabrics

DIN 53867 Testing of textile fabrics; determination of pilling with the Random-Tumble-Pilling-Tester




Our advantages


1. Design & Production : Solution Consultation for each order

    Recommend the most cost -performance machine

    Research & Develop the suitable one for Special- designed Model.

2. Shipping & Delivery: One-Stop Service

    Production- Deliver to your door - Installation & Training- Technical Support

3. Warranty

    1 year warranty with lifetime technology support

4. After-Sale Service

    React within 2 Hours

    Video inspection & on-site service combined
