2500N Electronic Footwear Testing Equipment ,Tensile Strength Testing Equipment

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-B609-1
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Max. Force: 50N,100N,500N,1000N,2500N(Optional)
Test Accuracy: ≤0.2%F·S Tensile Speed: 0.01~500mm/min
Blessing Ways: Manually Dimension: 670x480x1440mm
High Light:

2500N Tensile Strength Testing Equipment


500mm/Min Tensile Strength Testing Equipment


500mm/Min tensile strength testing machine

Product Description

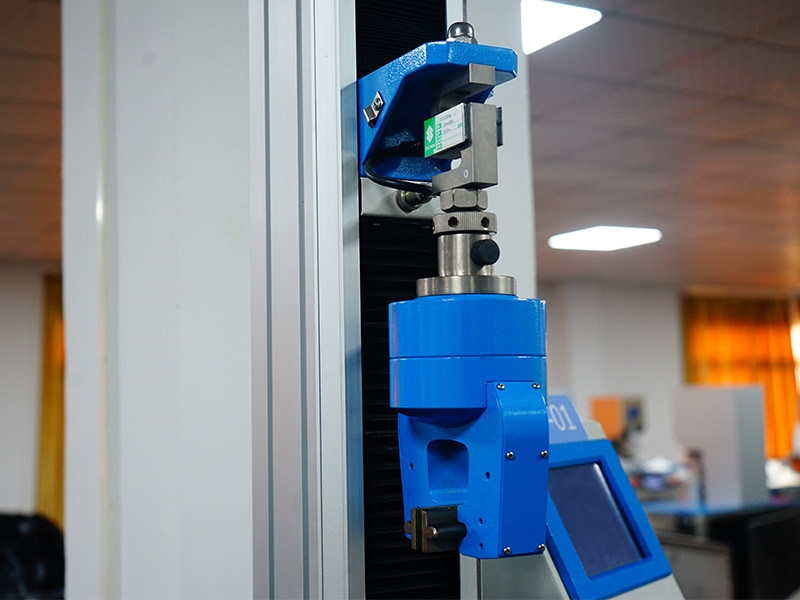

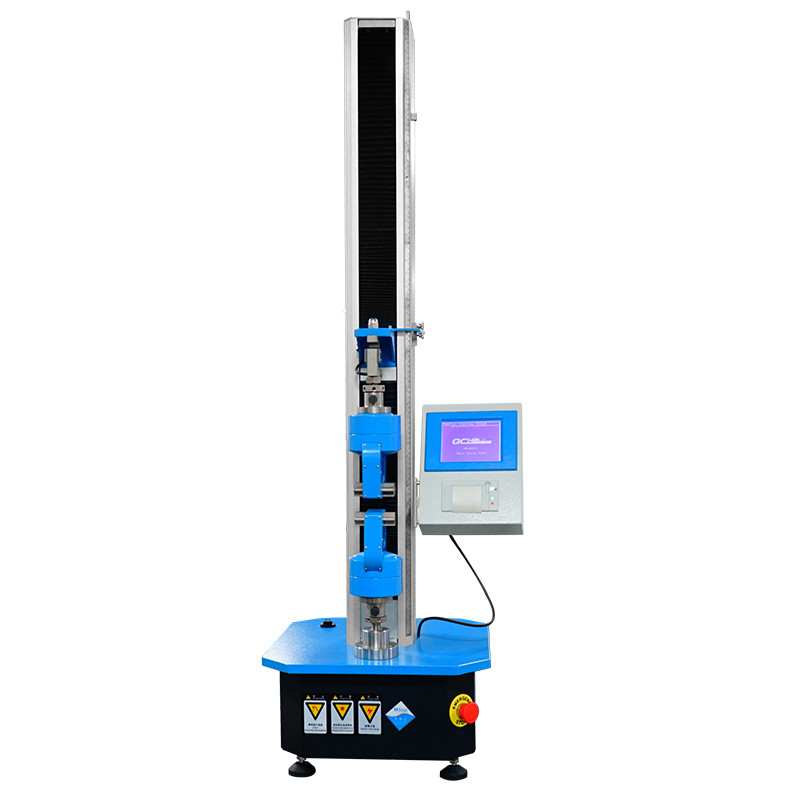

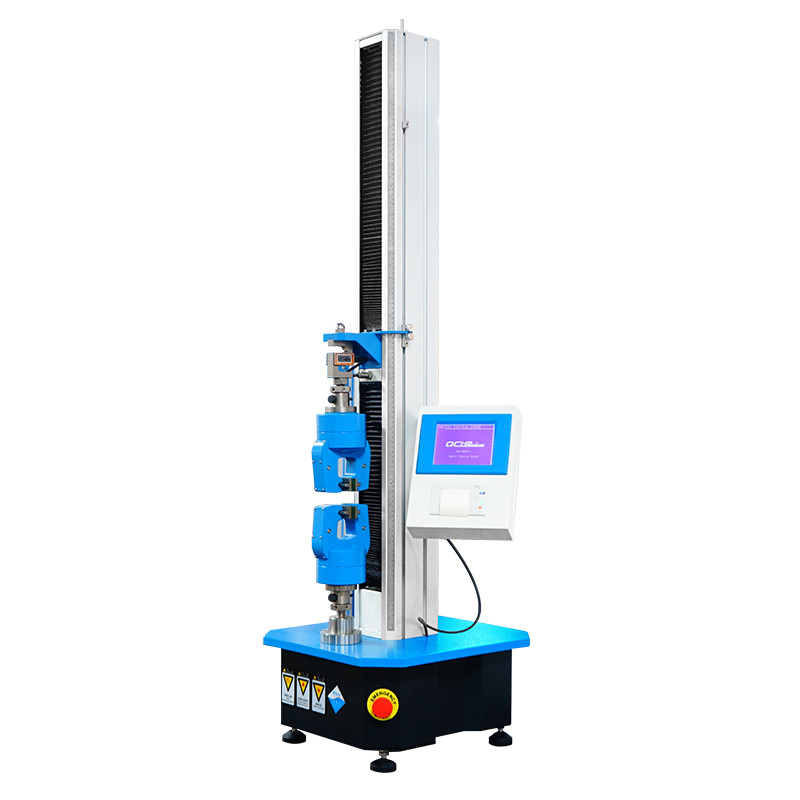

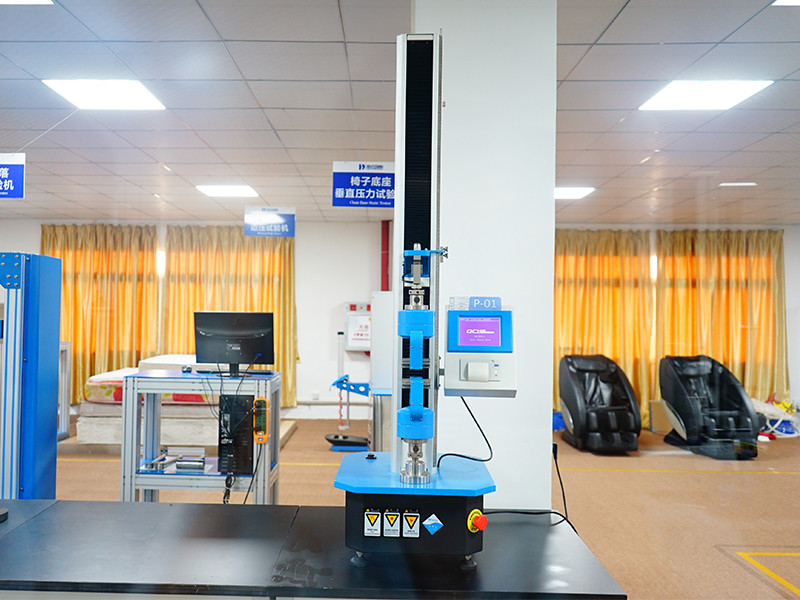

2500N Electronic Footwear Testing Equipment ,Tensile Strength Testing Equipment





Fabric Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

2500N Electronic Footwear Testing Equipment ,Tensile Strength Testing Equipment 0




Used for cotton, wool, linen, silk, wool fiber fabric, non-woven fabric, paper, ribbon and nonwoven fabric yarn tensile breaking strength and breaking elongation of determination



Test Standard


GB/T 3923.1,GB/T 3923.2,GB/T 3917.2,GB/T 19976,ISO 13934.1,ISO 13934.2

ISO 13935.1,ISO 13935.2,ASTM D5035,ASTM D2261,ASTM D 5034

(ps:difference test standards with different fixtures)



Technical Parameters


Technical Index HD-B609-1
Working mode CRE principle, microcomputer control
Max. Force 50N,100N,500N,1000N,2500N(Optional)
Test accuracy ≤0.2%F·S
Tensile speed 0.01~500mm/min
Max.elongation 600mm
Blessing ways Manually
Dimension 670x480x1440mm
Net Weight 60KG
Quality Control


A) Quality assurance items


The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)

During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for nonexpendable part) induced by non-human damage;
If any quality problems occurs within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by customer;
If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by customer, also charge for a favorable price;
Haida will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance;

B) The main quality warranty maintenance certificate

If there is any dispute please refer to our guarantee letter, so:

1. please keep the guarantee letter, if you lost it, please connect with us in a month.

2. If the guarantee letter has been altered or it has no our stamp, it is useless.
