ASTM Standard 220V Elmendorf Tearing Strength Tester For Textile Paper

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W812
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Unit Of Measurement: CN, N , Gf , Lbf
Tearing Distance: 43 ± 0.15m Slit Size: 20 ± 0.2 Mm
Display: LCD Display Backlight Template Size: As Per ASTM Standard
Dimensions: 490 X 430 X 680 Mm Net Weight: 58KG
High Light:

ASTM Standard elmendorf tearing strength tester


220V elmendorf tearing strength tester


ASTM Standard tensile strength machine

Product Description

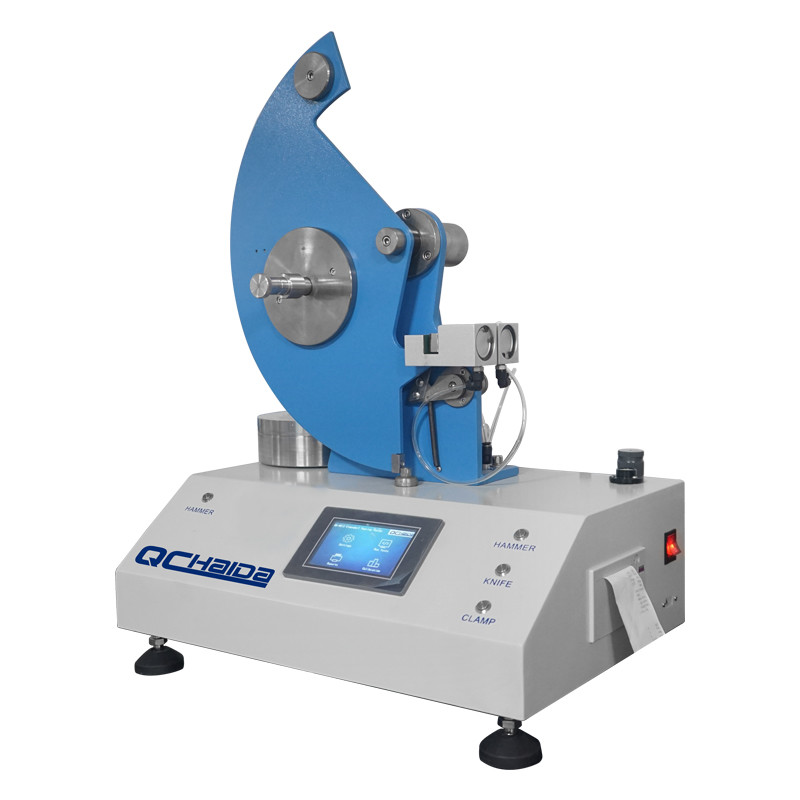

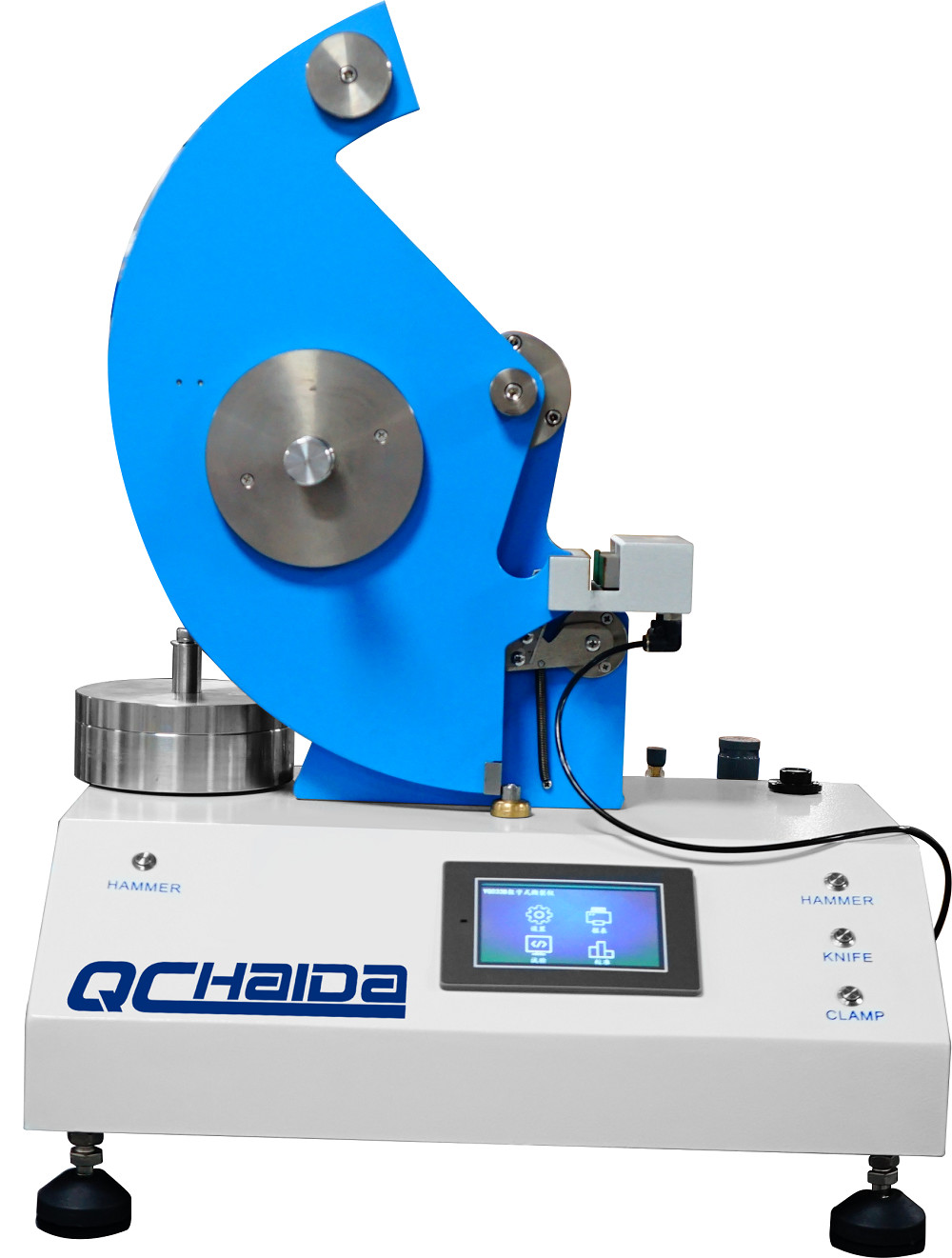

ASTM Standard 220V Elmendorf Tearing Strength Tester For Textile Paper



Elmendorf Tearing Tester to determine the ballistic tearing strength of woven fabrics, plastic films, paper, or other similar materials.
Standard Features

Technical Index HD-W812
Measuring pendulum range

32N (By adding Augmenting weight)
64N (By adding Augmenting weight)

Unit of measurement CN, N , gf , lbf
Distance between Clamps 7.0 ± 0.25 mm
Tearing Distance 43 ± 0.15m
Slit Size 20 ± 0.2 mm
Tollerance range 20-80 % of each full scale, settable range or full scale
Angular resolution high resolution digital optical encoder
Display LCD display backlight
Data port RS232 port for printer connection and 3 pin Mini-DIN connector for PC.
Statistics Force min. max. mean, CV%, St. Deviation, Range%
Template Size As per ASTM standard
Dimensions 490 x 430 x 680 mm
Power supply 220V, 50Hz
Net Weight 58KG

Textile: ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17
Plastics: ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141
Nonwovens: ASTM D5734, WSP 100.1
Paper: APPITA P 400,ASTM D 689,BS 4468,CSA D9,DIN 53128,EN 21974,ISO 1974
Elmendorf tearing tester
