Automatic Hydraulic Bursting Tester/Blasting Strength Testing Machine For Textile

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W813
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Net Weight: 125kg
Air Requirements: 600-800kPa Dimensions: 550 X 450 X 700 Mm
Diaphragm Rubber Thick: ≤ 2 Mm Safety Sensor: Over Scale Auto-stop
Pressure Measurement Range: 2000kPa, L/C : 1kPa Use: Textiles,Non-wovens
High Light:

2000kPa Tensile Strength Testing Equipment


ISO 2759 Tensile Strength Testing Equipment


2000kPa hydraulic bursting strength tester

Product Description

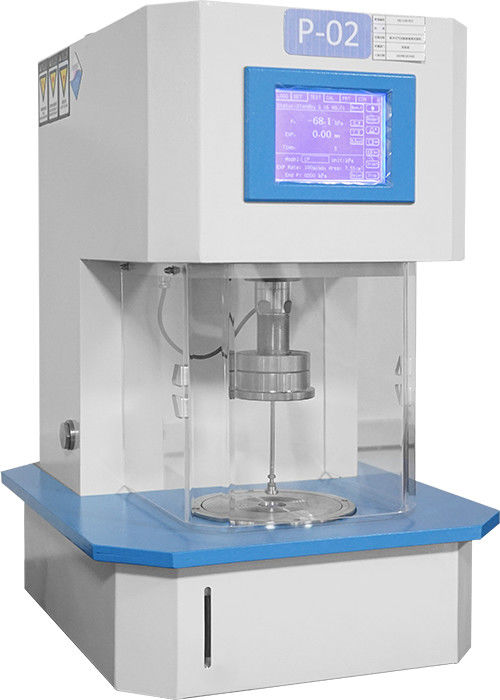

Automatic Hydraulic Bursting Tester/Blasting Strength Testing Machine For Textile




Automatic Hydraulic Bursting Tester is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. This tester is fully automatic-type rupture strength tester, Just put into the testing material, the tester automatically detect, automatic testing, automatic hydraulic recoil and automatic computing, storage testing data and printing. It is an important tester for controlling quality of finished product and quality inspection.


Testing Standard


ASTM D 3786,BS 4768 ,ISO 13938-1,ISO 2758,ISO 2759


We Will Do


Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.

24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.



Technical Details


Technical Index HD-W813
Pressure measurement range 2000kPa, L/C : 1kPa
Distension measurement range Up to 75 ± 0.02 mm
Measuring areas 7.55cm² (Ø 31mm) and 50cm² (Ø 79.8mm)
Unit of measurement kPa - kgf/cm² - mmHg - lb/in² - atm
Test methods Constant Rate - Constant Pressure - Constant Distension –Timing
Hydraulic system rate of flow (adjustable) 20-600mL/min
Hydraulic oil Glycerine 85%, distilled water 15%
Safety sensor Over scale auto-stop
Diaphragm rubber thick ≤ 2 mm
Data port RS232 port for printer connection and 3 pin Mini-DIN connector for PC
Dimensions 550 x 450 x 700 mm
Power supply 220V,50Hz
Air requirements 600-800kPa
Net Weight 125kg

Company Introduction


We can provide you with all kinds of testing equipment for fibers, yarns, leather, fabrics, non-fabric, gloves,cotton,bags etc. So as to bring you high quality and safe textiles.A list of our testing equipment:Air Permeability Tester, Martindale Tester, Sample Cutter, Taber Abrasion Tester, Pilling Tester, Snagging Tester, Softness Tester, Twist Tester, Bursting Tester, Crockmeter,Color Fastness Tester, Flammability Tester, Mask tester and so on.
